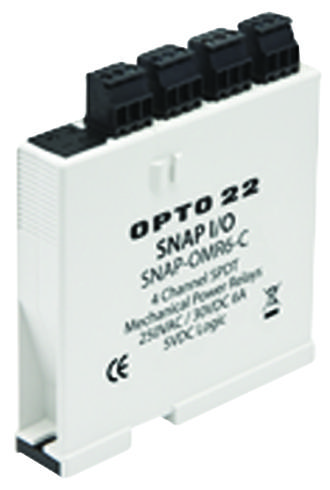

OPTO 22 SNAPOMR6C Mechanical Power Relay Module
The SNAP-OMR6-C is a four-channel isolated mechanical power relay output module designed for industrial automation and process control. Each of the four contacts can switch loads up to 6 amps at 250 VAC or 30 VDC, with relay contacts configurable as normally open or normally closed. The module provides channel-to-channel isolation, switching both AC and DC power, and features quick 8-millisecond turn-on and turn-off times. Its mechanical relay design ensures a true open circuit when off, preventing leakage, making it suitable for various industrial control applications with transient suppression recommended for inductive loads.
OPTO 22 SNAPOMR6C Mechanical Power Relay Module Specifications:
- Contact Configuration: Form C (SPDT), normally open or closed
- Line Voltage Range: 0-250 VAC or 0-30 VDC
- Current Rating: 6 amps switching at 250 VAC / 30 VDC
- Surge Current: 6 amps
- Minimum Load: 5 VDC, 10 mA
- Contact Resistance: Less than 100 milliohms
- Switching Power: 1500 VA / 144 W (DC)
- Peak Blocking Voltage: 250 VAC / 30 VDC
- Channel-to-channel Isolation: 300 VAC (1500 V transient)
- Pickup Voltage: 1 V @ 2 mA
- Dropout Voltage: 4 VDC
- Logic Supply Voltage: 5 VDC ± 0.25 V
- Logic Supply Current: 160 mA per module
- Turn-on/Turn-off Time: 8 milliseconds
- Operating Temperature: -20 to 70 °C
- Mechanical Life: 10 x 10^8 operations
- Operational Life: 30 x 10^3 operations
- Certifications: UL, CE, RoHS, DFARS
- Mechanical Mounting: Rack-mounted, snap-in installation
- Fusing: User-supplied, not included
Buy the Buy Opto 22 SNAP-OMR6-C Part Number SNAPOMR6C Online
Order the Opto 22 SNAP-OMR6-C online today to enhance your industrial automation systems. With four channels capable of switching up to 6 amps at 250 VAC or 30 VDC, this relay provides reliable, isolated switching for AC and DC loads. Its quick 8-millisecond switching time and true open circuit design ensure precise control and minimal leakage, especially advantageous in process control applications. Designed for easy rack mounting, it’s the ideal choice for automation engineers seeking durability, safety, and high-performance relay solutions. Fusing must be added externally.
Buy Opto 22 SNAP-OMR6-C now and experience unmatched reliability and high-current switching capabilities in industrial automation.
