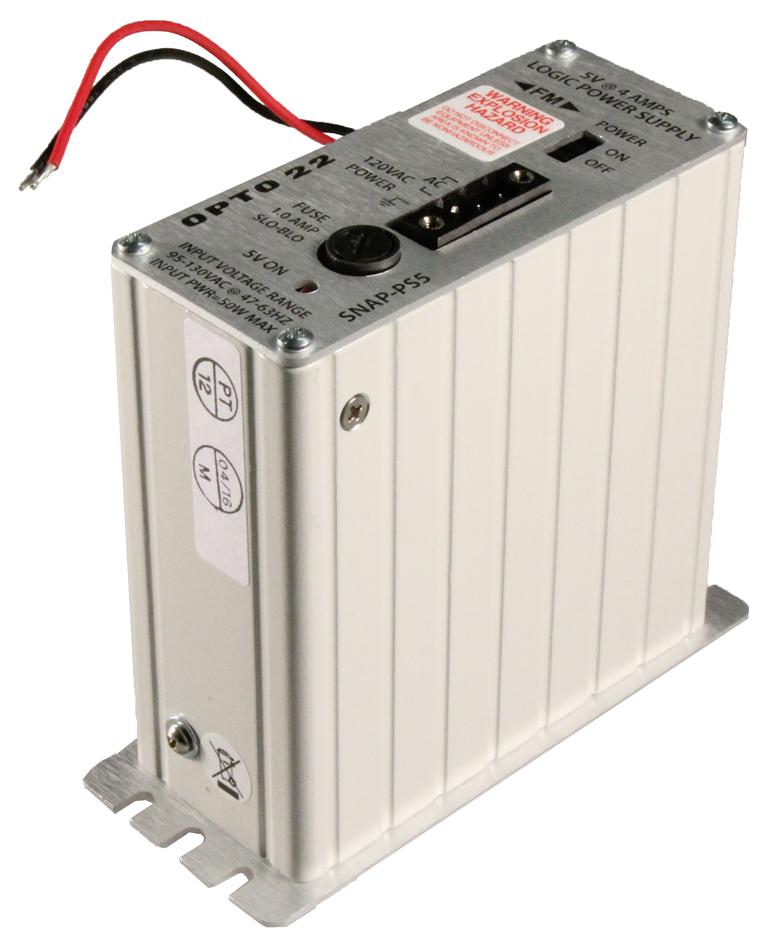

OPTO 22 SNAPPS5 SNAP Power Supply
The SNAP-PS5 is a 5.1V/20.4W AC/DC DIN-rail power supply with a fixed output, designed to provide reliable 5VDC power for OPTRO 22 SNAP PAC systems. It features a compact and sturdy housing, built-in fuse, LED status indicator, and an ON/OFF switch for ease of use. This power supply is ideal for rack-mounted SNAP PAC hardware, including I/O processors and modules, offering convenient panel mounting, simple connections, and a wide input voltage range. It operates within a temperature range of -20°C to 70°C, making it suitable for various industrial environments.
OPTO 22 SNAPPS5 SNAP Power Supply Specifications:
- Input Voltage: 95-130 VAC, 47-63 Hz
- Output Voltage: 5.1 VDC
- Output Current: 4.0A
- Maximum Input Current Draw: 0.4 Amps at 120 VAC
- Weight: 1.9 lbs (863.63 g)
- Operating Temperature: -20 to 70 °C
- Storage Temperature: -30 to 85 °C
- Dimensions: 4.09 inches (124.20mm) length, 2.00 inches (50.80mm) width
- Power: 20.4W
- Housing: Compact and sturdy with optional DIN-rail mounting
- Protection: Built-in fuse
- Indicators: LED status indicator
- Switch: ON/OFF power switch
- Connections: Removable terminal strip for AC input
Buy the Opto 22 Series SNAP-PS5: 5.1V/20.4W AC/DC Power Supply
Get your Opto 22 SNAP-PS5 power supply now to keep your industrial automation running smoothly. This compact, reliable DIN-rail power supply provides 5VDC at 4A, featuring a built-in fuse, LED indicator, and convenient ON/OFF switch. Designed for rack-mounted SNAP PAC hardware, it supports wide input voltage ranges from 95-130 VAC, operates efficiently between -20°C and 70°C, and comes with easy terminal connections. Perfect for control panels and automation setups requiring dependable, isolated power with simple installation and robust construction.
Order your Opto 22 Series SNAP-PS5 power supply today and ensure your automation system has reliable 5VDC power with easy DIN-rail mounting and built-in fuse.
