Panasonic 20SEPF120M Solid Capacitors
The Panasonic SEPF series radial lead solid capacitors feature high voltage (up to 35 VDC), large capacitance (up to 560 µF), and are RoHS compliant and halogen free. Designed for reliable operation at temperatures from -55°C to +105°C, they offer excellent endurance, low leakage current, and stable capacitance within ±20%. Suitable for various electronic applications, these capacitors have a robust construction, with sizes ranging from 6.3 mm to 8.0 mm in diameter and up to 35 mm in length. They provide steady performance under ripple, heat, and damp heat conditions, making them ideal for power supply and industrial uses.
Panasonic 20SEPF120M Solid Capacitors Specifications:
- Series: SEPF
- Rated Voltage Range: 16 VDC to 35 VDC
- Capacitance Range: 22 µF to 560 µF
- Size Code: C55, C6, E12, FA3
- Category Temperature Range: -55°C to +105°C
- Leakage Current: Please see attached characteristics list
- Dissipation Factor (tan δ): Please see attached characteristics list
- Capacitance Tolerance: ±20% (120 Hz at +20°C)
- Endurance: 150% of initial limit at +105°C for 5000 hours
- Damp Heat: Capacitance within +20% of initial value after 1000 hours at +60°C, 90-95% RH
- Physical Dimensions: Diameter from 6.3 mm to 8.0 mm, Length up to 35 mm
- Ripple Current (100 kHz/+105°C): 41A to 3300A depending on size and capacitance
- Frequency Correction Factors: 0.05 to 0.3 for 120Hz to 10kHz

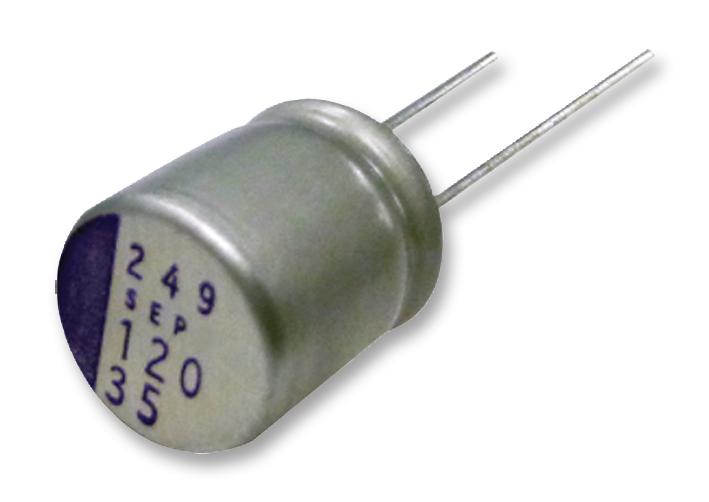

Buy the Panasonic Series SEPF High Voltage Capacitors: 20SEPF120M
Discover Panasonic Series SEPF solid capacitors, ideal for high voltage applications requiring large capacitance and reliable long-term performance. Designed for a broad temperature range from -55°C to +105°C, these RoHS-compliant and halogen free capacitors deliver stable operation, low leakage, and consistent capacitance within ±20%. Suitable for power supplies, industrial equipment, and demanding electronic circuits, they feature rugged construction, excellent ripple handling, and long endurance of 5000 hours at rated voltage, making them a dependable choice for your designs. Purchase online today to ensure top-quality capacitors for your electronics and industrial projects.
Order your Panasonic Series SEPF high voltage solid capacitors today and ensure reliable power filtering for your industrial and electronic projects.
Frequently Asked Questions
Where can I buy Panasonic 20SEPF120M?
You can click on the BUY or RFQ button to purchase 20SEPF120M from an authorized Panasonic distributor.
How do I troubleshoot issues or seek technical support for part 20SEPF120M?
You can download the 20SEPF120M datasheet or visit the Panasonic website for support.
Who is the manufacturer of 20SEPF120M?
Panasonic
