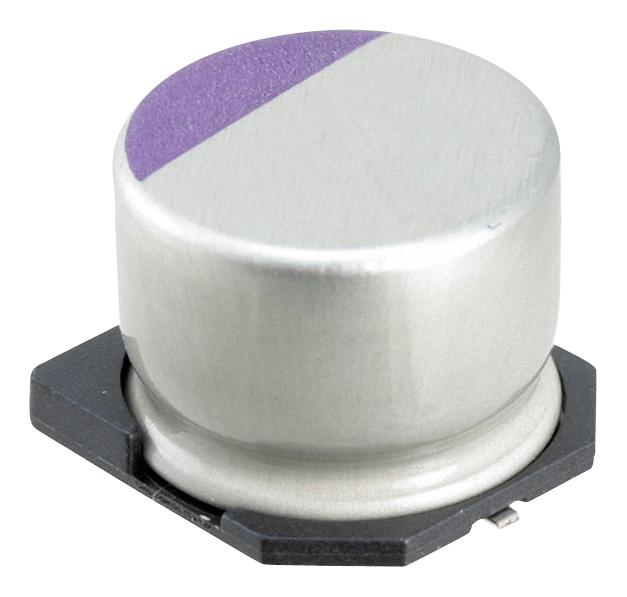

Panasonic 25SVPD39M Conductive Polymer Capacitor
The Panasonic 25SVPD39M is a surface mount conductive polymer aluminum capacitor within the SVPD series, engineered for robust performance in a wide range of electronic circuits. This capacitor offers a combination of high capacitance density, low ESR, and excellent frequency characteristics, making it ideal for applications such as power supplies, DC-DC converters, and filtering circuits. Its rated voltage range of 10-25V and capacitance range of 10-56μF provide flexibility in design, while its RoHS compliance and halogen-free construction meet stringent environmental standards. The capacitor's endurance and stability ensure long-term reliability in demanding operating conditions.
Panasonic 25SVPD39M Conductive Polymer Capacitor Specifications:
- Category temp. range: –55℃to +125℃
- Rated voltage range: 10 V to 25 V
- Nominal cap.range: 10 μF to 56 μF
- Capacitance tolerance: ±20 %(120 Hz / +20℃)
- DC leakage current: Please see the attached characteristics list
- Dissipation factor (tan δ): Please see the attached characteristics list
- Endurance: +125℃2000 h
- Damp heat: +85℃, 80 % to 90 % RH, 1000 h, No-applied voltage
- Ripple current: 538 mA rms
- Allowable ripple current: 1700 mA rms
- ESR: 45 mΩ max.
- tan δ: 0.12
- LC: 112 μA
- Frequency correction factor for ripple current: Refer to datasheet
- Size code: C6
- Rated voltage: 16V
- Rated capacitance: 82μF
- Case size øD: 6.3 mm
- Case size L: 5.9 mm
Buy the 25SVPD39M PANASONIC Conductive Polymer Capacitor | myMectronic
Purchase the Panasonic 25SVPD39M securely and efficiently through our online platform.
Buy Now
Frequently Asked Questions
Where can I buy Panasonic 25SVPD39M?
You can click on the BUY or RFQ button to purchase 25SVPD39M from an authorized Panasonic distributor.
How do I troubleshoot issues or seek technical support for part 25SVPD39M?
You can download the 25SVPD39M datasheet or visit the Panasonic website for support.
Who is the manufacturer of 25SVPD39M?
Panasonic
