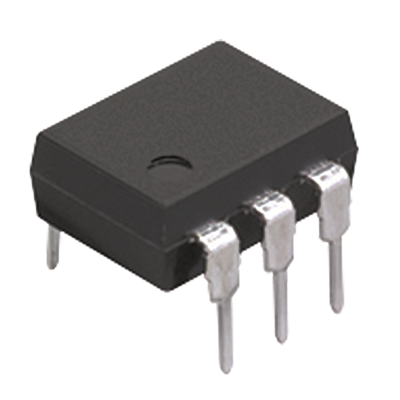

Panasonic AQV212 PhotoMOS relay
The AQV212 is a Solid State Relay with SPST-NO contact configuration and through-hole terminals. Part of Panasonic's PhotoMOS series, it offers extremely low closed-circuit offset voltage, enabling distortion-free control of low-level analog signals. Suitable for controlling relays, motors, lamps, and solenoids, this relay features stable on-resistance, minimal leakage in the off state, and quick switching times of up to 2ms for turn-on and 0.2ms for turn-off. It operates from -40°C to 85°C and is ideal for communication, networking, computer peripherals, measurement, and motor control applications. High demand may affect delivery times.
Panasonic AQV212 PhotoMOS relay Specifications:
- Package: Through-hole terminals
- Load voltage: 100V to 400V AC (depending on model)
- Load current: 50mA to 154mA (varies by model)
- Peak load voltage: 350V to 600V AC
- Off state leakage current: Max. 1pA
- On resistance: Max. 2.52Ω
- Turn-on time: Max. 2ms
- Turn-off time: Max. 0.2ms
- Isolation voltage: 1,500V AC, reinforced insulation type up to 5,000V
- Operating temperature: -40°C to +85°C
- Power dissipation: 550mW
- RoHS compliant
Buy the Buy Panasonic AQV212 Part Number AQV212 Online
Experience the reliability of Panasonic's AQV212 PhotoMOS relay, designed for controlling low-level analog signals with high isolation and fast switching times. Ideal for telecommunications, automation, and measurement equipment, it offers stable resistance, minimal leakage, and robust performance within a wide temperature range. The through-hole design provides easy installation, making it suitable for high-speed and sensitive control systems. Purchase online today to enhance your industrial automation systems with trusted Panasonic quality, ensuring durability and precision in every application.
Buy Panasonic AQV212 relay now and ensure reliable low-level signal control with fast switching and high isolation for industrial applications.
Frequently Asked Questions
Where can I buy Panasonic AQV212?
You can click on the BUY or RFQ button to purchase AQV212 from an authorized Panasonic distributor.
How do I troubleshoot issues or seek technical support for part AQV212?
You can download the AQV212 datasheet or visit the Panasonic website for support.
Who is the manufacturer of AQV212?
Panasonic
