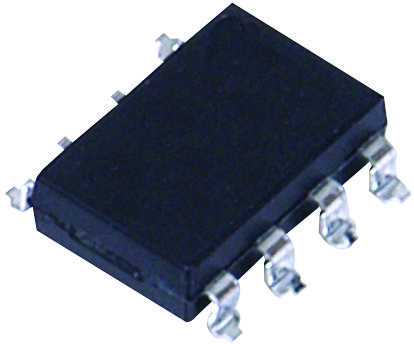

Panasonic AQW214A relay
The AQW214A is a compact and efficient relay designed for controlling low-level analog signals with high-speed response. Featuring an 8-pin DIP package measuring 6.4 x 9.78 x 3.9 mm, it supports load voltages from 60V to 600V and load currents up to 160mA. The device exhibits low off-state leakage current of just 1 pA and offers fast switching times around 0.65 ms. Its compact size and excellent electrical characteristics make it suitable for automated inspection, telecommunication equipment, and analog control applications, ensuring reliable performance in low-voltage environments.
Panasonic AQW214A relay Specifications:
- Package Size: 6.4 x 9.78 x 3.9 mm
- Configuration: 8-pin DIP (through hole)
- Load Voltage Range: 60V to 600V
- Load Current: Max. 160mA
- Peak Load Current: 15A
- Leakage Current: Max. 1 pA at off state
- Turn On Time: Typical 0.65 ms
- Turn Off Time: Typical 0.08 ms
- Isolation Voltage: 1,500V AC
- Operating Temperature Range: -40°C to +85°C
- Power Dissipation: Total 850 mW
- Input LED Current: 5 mA recommended
- LED Forward Voltage: 1.25V typical
- Peak Forward Current: 1A
- Insulation Resistance: Min. 1,000 MΩ
Buy the Panasonic Series AQW214 Relay: AQW214A
Purchase the Panasonic AQW214A relay online today and benefit from its compact design, fast switching response, and low leakage current. This relay is ideal for controlling low-level analog signals in automation, telecommunication, and inspection equipment, supporting load voltages from 60V to 600V with a maximum load current of 160mA. Its small footprint, high insulation voltage, and reliable operation make it perfect for industrial and electronic control applications. Order now to enhance your projects with high-quality, dependable relays directly from our online store.
Order your Panasonic Series AQW214A relay today and ensure dependable, high-speed analog control for your automation and telecommunication projects.
Frequently Asked Questions
Where can I buy Panasonic AQW214A?
You can click on the BUY or RFQ button to purchase AQW214A from an authorized Panasonic distributor.
How do I troubleshoot issues or seek technical support for part AQW214A?
You can download the AQW214A datasheet or visit the Panasonic website for support.
Who is the manufacturer of AQW214A?
Panasonic
