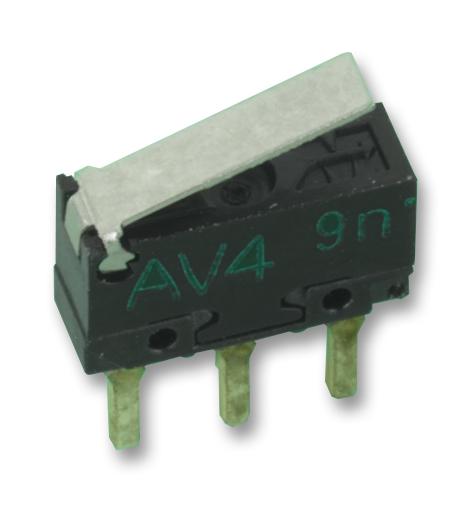

Panasonic AV402461 Miniature Snap-Action Switch
The product is a miniature snap-action switch designed with a superminiature form factor and lightweight construction, suitable for compact visual, audio, and office automation equipment. It features a mechanical life of at least 300,000 operations and utilizes stainless steel plated silver or gold for actuating springs. The switch can be mounted in various directions and types, including solder terminal, PC board terminal, hinge lever, and simulated roller lever. It offers reliable performance with resistive load contacts, high insulation resistance, and withstand voltage ratings, making it ideal for various industrial and electronic applications.
Panasonic AV402461 Miniature Snap-Action Switch Specifications:
- Mechanical life of at least 300,000 operations
- Contact Resistance: Max. 200 mΩ (initial)
- Insulation Resistance: Min. 100 MΩ at 250V DC
- Voltage Withstand: 500V AC for 1 min between terminals and ground
- Operating temperature: -25°C to +80°C
- Dimensions vary with type, with pin plunger diameter of 1.65 mm
- Contact Types: Silver or gold plated for resistive loads
- Mounting: Solder terminal, PC board terminal, hinge lever, and simulated roller lever options
- Actuator types include pin plunger, hinge lever, and roller lever
- Vibration and shock resistant for reliable switching
- Pretravel and overtravel dimensions depend on actuator type
- Material: Stainless steel for actuating spring, various plastics for switch body
- Soldering: Hand soldering recommended below 18W, tip temperature below 320°C
Buy the Panasonic AV4 – Reliable Snap-Action Switch for Industrial Applications
Purchase the Panasonic AV4 series miniature snap-action switch online today to ensure high durability and reliable switching performance for your electronic devices. This lightweight and compact switch offers excellent mechanical life, multiple actuator options including pin plunger, hinge lever, and roller lever, and features resistive load contacts with significant insulation resistance and withstand voltage ratings. Ideal for automation, visual and audio equipment, and office automation systems, this reliable switch guarantees long-lasting operation and versatile mounting options, ensuring seamless integration into your projects.
Order your Panasonic AV4 series miniature snap-action switch today and enhance your electronic projects with dependable, lightweight, and versatile switching components.
