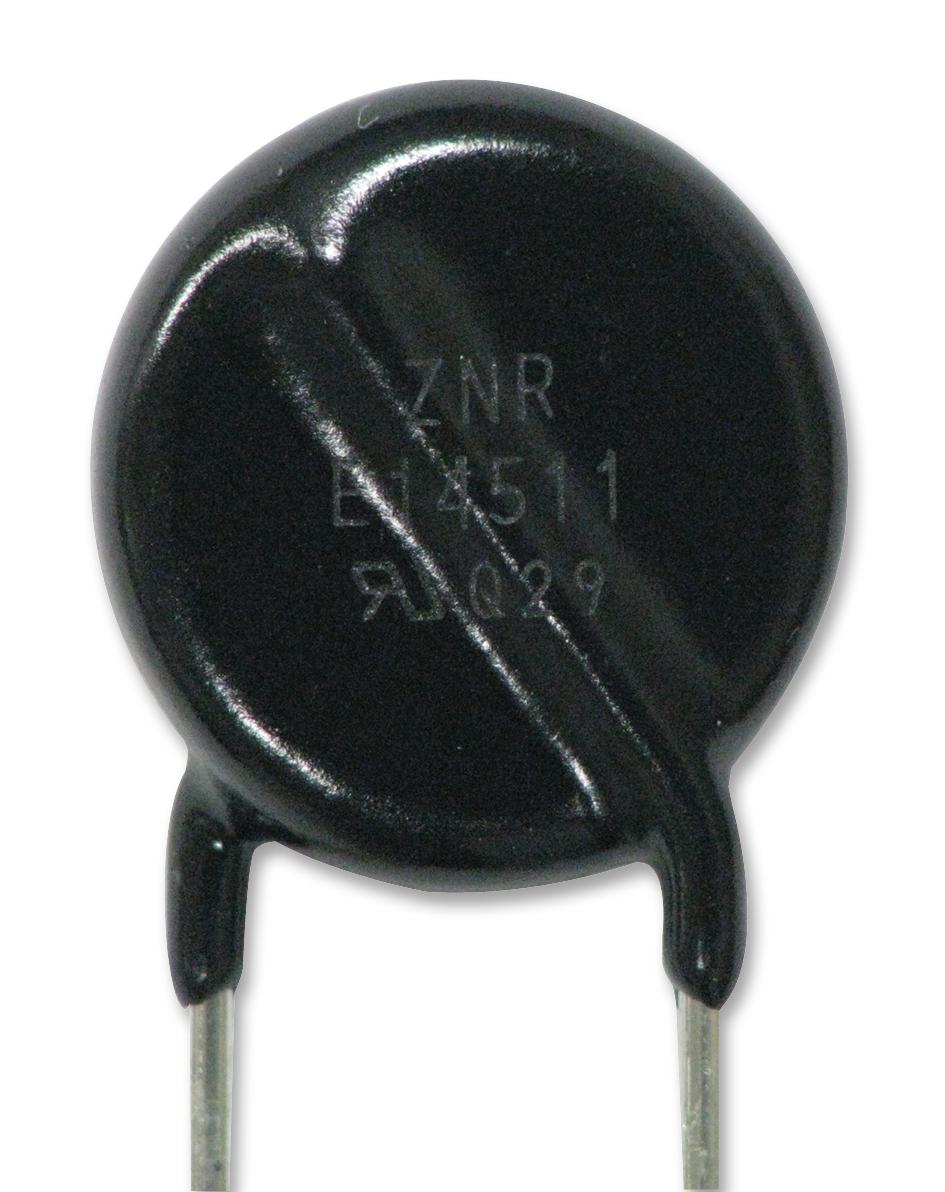

Panasonic ERZE14A361SC Transient Surge Absorber
The Panasonic ZNR Type D Transient Surge Absorbers Series E14-S1 are compact, high-capacity surge protection devices designed to absorb transient overvoltages in electronic circuits. They feature large withstanding surge currents and wide voltage ranges, suitable for protecting semiconductors like transistors, diodes, ICs, thyristors, and triacs in various applications including consumer electronics, communication, measurement, and home appliances. They are RoHS compliant and meet safety standards such as UL and VDE, ensuring reliable surge suppression in high-temperature environments up to 125°C.
Panasonic ERZE14A361SC Transient Surge Absorber Specifications:
- Operating Temperature Range: -40 to 125 °C
- Storage Temperature Range: -40 to 125 °C
- Rated Voltage: 200V to 1100V AC
- Maximum Peak Voltage at 8/20us: 170V to 1120V
- Allowable Surge Current: 100A to 1000A depending on model
- Clamp Voltage at 8/20us: 340V to 1815V
- Capacitance: 350pF to 4200pF
- Power Dissipation: 1.0W to 1.0W at 8/20us
- Peak Current: 100A to 1000A
- Approval Standards: UL1449, VDE IEC61051-1, -2, -2-2
- Lead Configuration: Straight or Cut Leads
- Dimensions: D max. 17.5 mm, length varies per series
- RoHS compliant, safety approved
- Series: E14-S1, Part No. ERZE14A561SC, ERZE14A361SC, etc.
Buy the Buy Panasonic Surge Absorber Part Number ERZE14A361SC Online
Purchase the Panasonic ERZE14A361SC surge absorber online today to safeguard your electronic devices from transient voltage spikes. Designed for high-capacity surge current handling, these compact devices meet international safety standards such as UL and VDE. Ideal for protecting semiconductors and electronic circuits in consumer electronics, communication, measurement, and home appliances. Enjoy fast delivery and genuine products, ensuring optimal performance and reliability in high-temperature environments up to 125°C. Secure your equipment now with our trusted online ordering platform.
Buy Panasonic ERZE14A361SC surge absorber now and ensure reliable transient overvoltage protection for high-temperature electronic applications.
