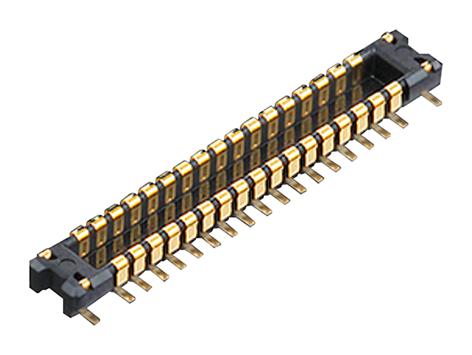

Panasonic AXG254144 Narrow Pitch Connector
This narrow pitch connector features a 0.35mm pitch, offering excellent contact reliability in a compact design with a width of only 1.7 mm. Suitable for board-to-FPC connections, it boasts a low profile with mated heights of 0.6 mm and 0.8 mm, making it ideal for wearable devices, smartphones, and hearables. Constructed with proprietary “TOUGH CONTACT” technology, the connector provides robust electrical performance even in tough environments. Its slim profile and high-density design facilitate space-saving, high-performance electronic assemblies.
Panasonic AXG254144 Narrow Pitch Connector Specifications:
- Pitch: 0.35mm
- Rated current: Max. 0.3A per contact (Total 5A)
- Rated voltage: 60V AC/DC
- Dielectric strength: 150V AC for 1 minute
- Insulation resistance: Min. 1,000MΩ at 250V DC
- Contact resistance: Max. 90mΩ
- Mated height options: 0.6mm and 0.8mm
- Pin count range: 6 to 60 pins
- Material: Contact parts made of copper alloy, surface plated with Au over Ni
- Soldering temperature: Up to 260°C, peak within 10 seconds
- Operating temperature: -55°C to +85°C
- Storage temperature: -20°C to +60°C in dry conditions
- Mechanical durability: Up to 200 mating cycles
- Compliance: Conforms to relevant safety standards
Buy the Buy Panasonic Narrow Pitch Connectors Part Number AXG254144 Online
Enhance your electronic assemblies with the high-quality Panasonic Narrow Pitch Connector, designed for reliable board-to-FPC connections. Its slim profile of only 1.7 mm width and low-profile heights of 0.6 mm and 0.8 mm allow space-saving designs, ideal for wearable devices, smartphones, and hearables. Featuring proprietary “TOUGH CONTACT” technology, it ensures excellent contact reliability even in tough environments. Easy to handle, solder, and reflow solder, this connector guarantees durability and high performance in compact electronic applications. Order now to ensure your device's connectivity is top-notch.
Order your Panasonic Narrow Pitch Connectors AXG254144 today and enjoy high-reliability connectivity for compact wearable and mobile device projects.
Frequently Asked Questions
Where can I buy Panasonic AXG254144?
You can click on the BUY or RFQ button to purchase AXG254144 from an authorized Panasonic distributor.
How do I troubleshoot issues or seek technical support for part AXG254144?
You can download the AXG254144 datasheet or visit the Panasonic website for support.
Who is the manufacturer of AXG254144?
Panasonic
