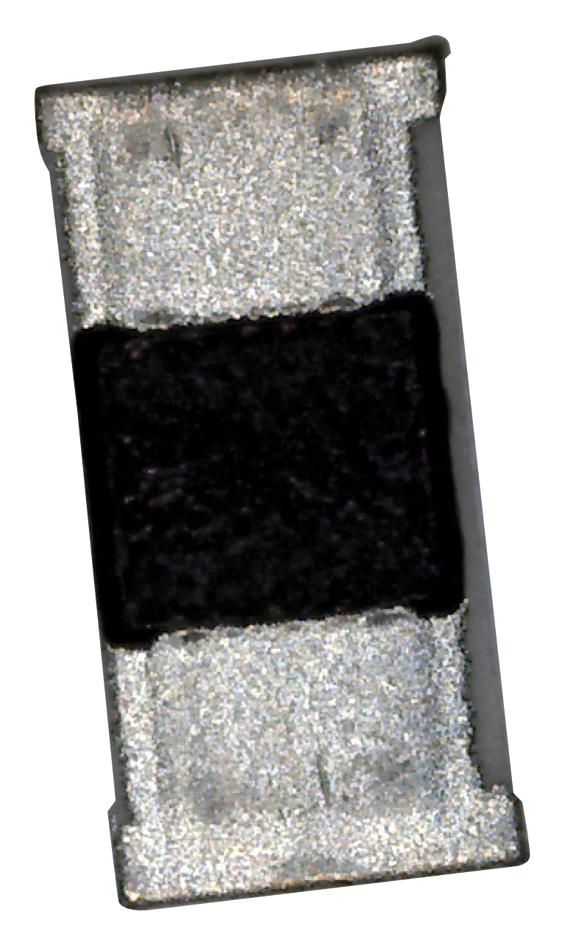

Panasonic ERJ8BWFR010V Automotive-Grade Chip Resistor
The Panasonic ERJ 8BW series resistors are high-power, automotive-grade thick film current sensing chip resistors available in sizes from 0402 to 2512. They feature low resistance from 5 milliohms to 9.1 ohms, with a triple-layer electrode structure for enhanced reliability. Designed for high pulse handling, they are suitable for automotive, industrial, and power applications, offering ±1%, ±2%, or ±5% tolerance, and operating from -55°C to 155°C. Compliant with industry standards such as IEC 60115-8, JIS C 5201-8, and JEITA RC-2144, these resistors support both reflow and flow soldering processes.
Panasonic ERJ8BWFR010V Automotive-Grade Chip Resistor Specifications:
- Size options: 0402, 0603, 0805, 1206, 1210, 1812, 2010, 2512
- Resistance range: 5 milliohms to 9.1 ohms
- Power rating: 1W maximum
- Resistance Tolerance: ±1%, ±2%, ±5%
- Temperature Coefficient: 0 to ±300 ppm/°C
- Operating Temperature: -55°C to 155°C
- Construction: Thick film, metal glaze resistive element with triple-layer electrodes
- Standards compliance: IEC 60115-8, JIS C 5201-8, JEITA RC-2144
- Soldering: Suitable for both reflow and flow soldering
- Features: High pulse handling, lightweight, reliable, automotive-grade (AEC-Q200)
Buy the Panasonic Series ERJ 8BW Low Resistance Chip Resistor: ERJ8BWFR010V
Purchase the Panasonic Series ERJ 8BW low resistance thick film chip resistor online today and ensure your electronic projects benefit from high reliability, automotive standards, and excellent pulse handling capabilities. Perfect for power management and current sensing applications, these resistors come in various sizes with resistance ranges from 5 milliohms to 9.1 ohms. Designed for both reflow and flow soldering, they provide high precision, temperature stability, and superior durability, delivering dependable performance for industrial, automotive, and electronics manufacturing needs.
Order your Panasonic Series ERJ 8BW low resistance resistor today and enhance your power and current sensing projects with reliable automotive-grade performance.
Frequently Asked Questions
Where can I buy Panasonic ERJ8BWFR010V?
You can click on the BUY or RFQ button to purchase ERJ8BWFR010V from an authorized Panasonic distributor.
How do I troubleshoot issues or seek technical support for part ERJ8BWFR010V?
You can download the ERJ8BWFR010V datasheet or visit the Panasonic website for support.
Who is the manufacturer of ERJ8BWFR010V?
Panasonic
