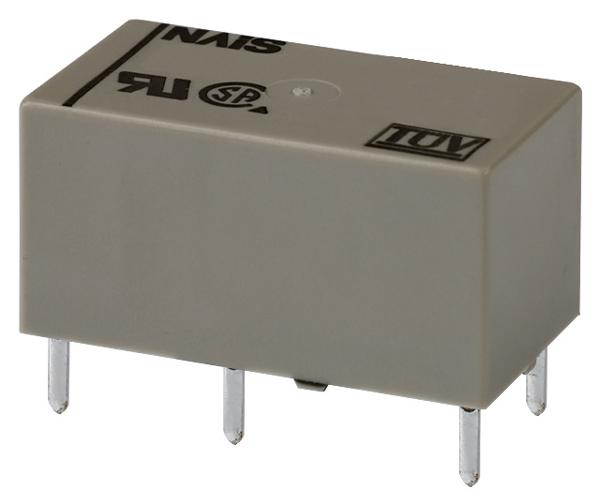

Panasonic DSP2ADC24V Industrial Relay
This is a general-purpose relay with a coil voltage of 24 V DC. It features a 2A DPST-NO contact configuration, capable of handling up to 8 amps. The relay is designed for PCB mounting and operates as a single-side stable switch. Suitable for various industrial and electronic applications, it offers high inrush current capacity and reliable switching performance, with safety standards compliance including RoHS, UL, CSA, TUV, and Japan Electrical Safety Law.
Panasonic DSP2ADC24V Industrial Relay Specifications:
- Coil Voltage: 24 V DC
- Contact Configuration: 2A DPST-NO
- Maximum Switching Current: 8A
- Maximum Switching Power: 2000 VA
- Contact Material: Au-flashed AgSnO type
- Initial Contact Resistance: Max. 30 mΩ
- Insulation Resistance: 1,000 MΩ at 500 V
- Dielectric Strength: 3000 Vrms between terminals
- Operating Time: Max. 10 ms
- Release Time: Max. 5 ms
- Operating Temperature Range: -40°C to +85°C
- Dimensions: 20.2 mm x 20.2 mm x 11 mm
- Mounting Type: PCB
- Standards: RoHS, UL, CSA, TUV compliant
Buy the Panasonic Series Relay: 24V DC 2A DPST-NO: DSP2ADC24V
Purchase the Panasonic DSP2ADC24V relay online now to ensure dependable performance in your electronic and industrial projects. Featuring 24V DC coil voltage and 2A DPST-NO contacts, this relay is designed for PCB mounting, providing high switching power up to 2000 VA and handling current up to 8A. Its robust construction and compliance with RoHS, UL, CSA, and TUV safety standards ensure quality and safety. Easy to install and suitable for a wide range of control systems, it offers reliable operation and long service life. Buy online today for seamless integration into your applications!
Get Panasonic DSP2ADC24V relay today—built for reliable switching and long-lasting durability for industrial and electronic applications.
Frequently Asked Questions
Where can I buy Panasonic DSP2ADC24V?
You can click on the BUY or RFQ button to purchase DSP2ADC24V from an authorized Panasonic distributor.
How do I troubleshoot issues or seek technical support for part DSP2ADC24V?
You can download the DSP2ADC24V datasheet or visit the Panasonic website for support.
Who is the manufacturer of DSP2ADC24V?
Panasonic
