Panasonic DSP2AL2DC5V high-capacity relay
This is a general-purpose relay with a 5 V DC coil voltage, offering high contact rating and robust construction. It features a 2A double-pole single-throw (DPST-NO) contact configuration, capable of handling up to 8 amps and 250 V AC resistive load capacity. Suitable for PCB mounting, it incorporates a 2-coil latching function for reliable switching. Its compact design and high insulation resistance make it ideal for industrial control, automation, and electronic device applications, ensuring long-term performance and safety compliance.
Panasonic DSP2AL2DC5V high-capacity relay Specifications:
- Coil Voltage: 5 V DC
- Contact Arrangement: 2A DPST-NO
- Maximum Switching Power: 8A 250V AC resistive load
- Maximum Switching Voltage: 250V AC
- Maximum Switching Current: 8 A
- Contact Resistance: Max. 30 mΩ (at 6 V DC, 1 A)
- Insulation Resistance: 1,000 MΩ at 500 V
- Breakdown Voltage: 3,000 Vrms between terminals (excluding coil)
- Material: Au-flashed AgSnO type
- Operating Power: Approximately 300 mW
- Dimensions: External dimensions approximately 12.0 mm diameter, 20 mm height
- Mounting Style: PCB compatible
- Safety Standards: UL, CSA, and TUV compliance

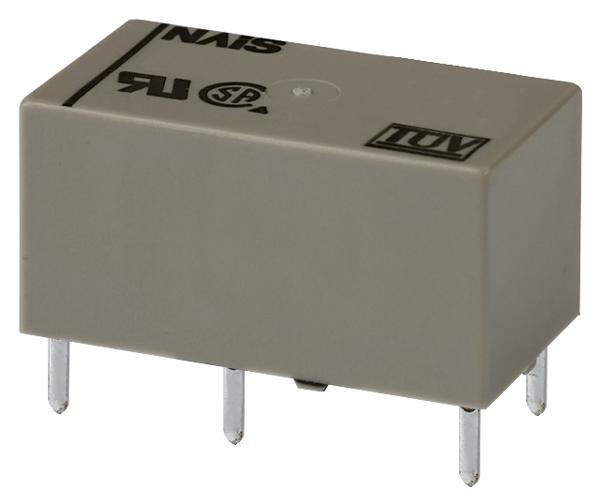

Buy the Buy Panasonic Relay Part Number DSP2AL2DC5V Online
Enhance your electronic control system with the high-capacity relay. Featuring a 5V DC coil and 2A DPST-NO contacts, it ensures reliable switching up to 8 amps at 250V AC. Compact and PCB mountable, this relay is suitable for industrial automation, control panels, and electronic devices. Its robust construction includes high insulation resistance and safety standards adherence, making it ideal for demanding applications. Order online today to benefit from quick delivery and trusted quality.
Buy Panasonic DSP2AL2DC5V relay now and experience unmatched reliability and performance in your control systems.
Frequently Asked Questions
Where can I buy Panasonic DSP2AL2DC5V?
You can click on the BUY or RFQ button to purchase DSP2AL2DC5V from an authorized Panasonic distributor.
How do I troubleshoot issues or seek technical support for part DSP2AL2DC5V?
You can download the DSP2AL2DC5V datasheet or visit the Panasonic website for support.
Who is the manufacturer of DSP2AL2DC5V?
Panasonic
