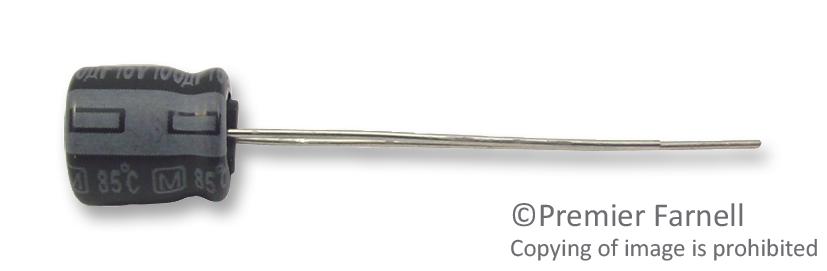

Panasonic ECA1CM220 Aluminum Electrolytic Capacitor
The Panasonic ECA1CM220 is a radial lead type aluminum electrolytic capacitor suitable for a wide range of industrial applications requiring stable and reliable power storage. It boasts an endurance rating of 85°C for 2000 hours, ensuring long-term performance under demanding conditions. The capacitor is RoHS compliant, meeting environmental standards. Its compact design and robust construction make it a versatile choice for power supplies, filtering circuits, and other critical applications. Available in various capacitance and voltage ratings to meet specific design requirements.
Panasonic ECA1CM220 Aluminum Electrolytic Capacitor Specifications:
- Endurance: 85 ℃ 2000 h
- Rated voltage range: 6.3 V to 100 V, 160 V to 450 V
- Capacitance range: 2.2 μF to 22000 μF
- Capacitance tolerance: ±20 % (120 Hz / +20℃)
- Leakage current: I ≦ 0.01 CV or 3 (μA) After 2 minutes, I ≦ 0.06 CV + 10 (μA) After 2 minutes
- Dissipation factor: Please see the attached characteristics list
- Capacitance change: Within ±20 % of the initial value
- DC leakage current: Within the initial limit
- Shelf life: Stabilized at +20 °C, capacitors shall meet the limits specified in endurance.
- Frequency correction factor for ripple current: See datasheet table
- Dimensions: See datasheet table
- Lead length: 2.0 to 7.5 mm
Buy the ECA1CM220 PANASONIC Aluminum Electrolytic Capacitor | myMectronic
Purchase the Panasonic ECA1CM220 aluminum electrolytic capacitor securely and efficiently through our online store.
Buy Now
Frequently Asked Questions
Where can I buy Panasonic ECA1CM220?
You can click on the BUY or RFQ button to purchase ECA1CM220 from an authorized Panasonic distributor.
How do I troubleshoot issues or seek technical support for part ECA1CM220?
You can download the ECA1CM220 datasheet or visit the Panasonic website for support.
Who is the manufacturer of ECA1CM220?
Panasonic
