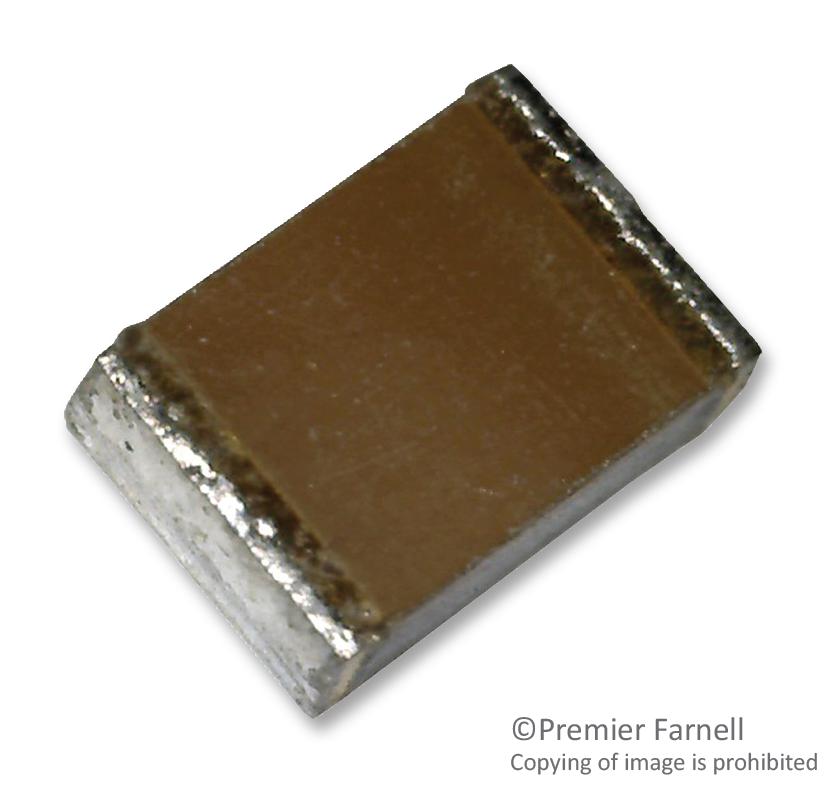

Panasonic ECHU1H224GX9 Stacked Metallized PPS Film Capacitor
The ECHU series consists of stacked metallized PPS film chip capacitors designed for high-frequency filtering, oscillation suppression, and audio applications. Featuring a small size with dimensions approximately 3.2 mm x 1.6 mm, these capacitors support reflow soldering and are RoHS compliant. They operate within a temperature range from -55°C to +125°C, with rated voltages of 16V or 50V DC and capacitance values ranging from 0.00010 to 0.22 µF. Their construction ensures durability, reliable performance, and suitable application in modern electronic circuits requiring precise, high-frequency filtering.
Panasonic ECHU1H224GX9 Stacked Metallized PPS Film Capacitor Specifications:
- Category temperature range: -55°C to +125°C
- Rated voltage: 16V or 50V DC
- Capacitance: 0.00010 µF to 0.22 µF
- Tolerance: +2% (G), +5% (J)
- Dimensions: approximately 3.2 mm x 1.6 mm (size code H2, J2)
- Reflow soldering max temperature: 260°C for up to 5 seconds
- Operating temperature includes self temperature rise in high-frequency circuits
- RoHS compliant, designed for high-frequency switching circuits and noise suppression
- Dielectric: PPS film with stack metallized construction ensures durability
- Strict adherence to environmental and safety standards for electronic components
Buy the Buy Panasonic PPS Film Capacitor Part Number ECHU1H224GX9 Online
Experience reliable high-frequency performance with the Panasonic PPS film capacitor. Perfect for filtering, oscillation, and resonance applications, it supports reflow soldering and operates in a wide temperature range. Its compact size and RoHS compliance make it ideal for modern electronic devices requiring precise, noise-free operation. Purchase online today to ensure your project benefits from top-quality components designed for durability and excellent electrical stability in demanding circuits.
Order your Panasonic Series ECHU1H224GX9 small PPS film capacitor today and enhance your high-frequency filtering and oscillation suppression projects.
Frequently Asked Questions
Where can I buy Panasonic ECHU1H224GX9?
You can click on the BUY or RFQ button to purchase ECHU1H224GX9 from an authorized Panasonic distributor.
How do I troubleshoot issues or seek technical support for part ECHU1H224GX9?
You can download the ECHU1H224GX9 datasheet or visit the Panasonic website for support.
Who is the manufacturer of ECHU1H224GX9?
Panasonic
