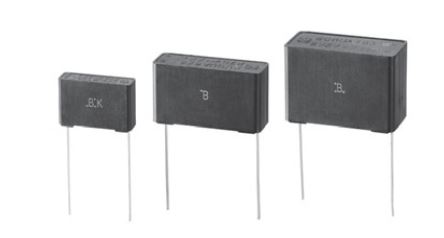

Panasonic ECQUAAF334M Metallized Polypropylene Film Capacitor
The Panasonic ECQ-UAAF334M is a plastic film capacitor within the ECQUA series, specifically designed for applications requiring high safety and reliability. It utilizes metallized polypropylene film construction and incorporates a safety mechanism in accordance with UL/CSA and European safety regulations. Key features include high humidity resistance, a compact form factor, and flame-retardant properties. This capacitor is commonly used as an interference suppressor in various electronic circuits. Its robust design and compliance with industry standards ensure consistent performance and longevity.
Panasonic ECQUAAF334M Metallized Polypropylene Film Capacitor Specifications:
- Category temp. range: −40 ℃ to +110 ℃
- Rated voltage [AC]: 275 V
- Capacitance range: 0.0082 μF to 10.0 μF
- Capacitance tolerance: ±10 % (K),±20 % (M)
- Dissipation factor (tan δ): C>1.0 μF : tan δ≦0.2 % ( 20 ℃, 1 kHz ) C ≦ 1.0 μF : tan δ ≦ 0.1 % ( 20 ℃, 1 kHz )
- Withstand voltage: Between terminals：633 V [AC], 1183 V [DC], 60 s Between terminals to enclosure：2050 V [AC], 60 s
- Insulation resistance (IR): C ≦ 0.47 μF : IR ≧ 2,000 MΩ (20 ℃, 500 V [DC], 60 s) C > 0.33 μF : IR ≧ 5,000 MΩ ∙ μF (20 ℃, 100 V [DC], 60 s) C ≦ 0.33 μF : IR ≧ 15,000 MΩ (20 ℃, 100 V [DC], 60 s)
- Maximum AC voltage: 310 V [AC]
Buy the ECQ-UAAF334M PANASONIC Metallized Polypropylene Film Capacitor | myMectronic
Purchase the Panasonic ECQ-UAAF334M securely and efficiently for your industrial needs.
Buy Now
Frequently Asked Questions
Where can I buy Panasonic ECQUAAF334M?
You can click on the BUY or RFQ button to purchase ECQUAAF334M from an authorized Panasonic distributor.
How do I troubleshoot issues or seek technical support for part ECQUAAF334M?
You can download the ECQUAAF334M datasheet or visit the Panasonic website for support.
Who is the manufacturer of ECQUAAF334M?
Panasonic
