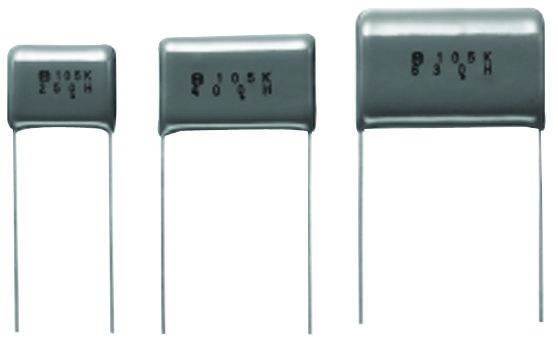

Panasonic ECQE2334KB Polyester Film Capacitor
The Panasonic ECQE(B) Series metallized polyester film capacitor offers compact size, excellent electrical characteristics, and flame retardant epoxy resin coating. With a temperature range of -40°C to +105°C and rated voltages of 125VAC or 250VDC, it is suitable for general-purpose applications. Capacitance ranges from 0.010 UF to 4.7 UF with tolerances of +5% or +10%. Its construction ensures high reliability, with specifications indicating withstand voltages, insulation resistance, and frequency stability. This capacitor is ideal for electronic circuits requiring stable, flame-retardant film components.
Panasonic ECQE2334KB Polyester Film Capacitor Specifications:
- Capacitance range: 0.010 UF to 4.7 UF
- Capacitance tolerance: +5% (J), +10% (K)
- Rated voltage: 125 VAC and 250 VDC
- Temperature range: -40°C to +105°C
- Surface temperature (including surface-rise): up to 105°C
- Dissipation factor: tand=1.0% at 20°C, 1 kHz
- Insulation resistance: 425 VAC Cs 0.47 UF: IR>2000 MΩ (20°C, 500 VDC)
- Rated voltage derating: 1.25%/°C above 85°C (250 VDC)
- Rated volt. (VDC) x150% for 60s withstand voltage
- Between terminals: rated voltage (VAC) x230% for 60s
- Dimensions: approx. 79mm x 42mm x 7.4mm (varies slightly per capacitance)
- Lead spacing: 5.0mm for smaller, 7.5mm for larger models
- Flame retardant epoxy coating, RoHS compliant
- Non-inductive construction with metallized polyester film
Buy the Panasonic Series ECQE Capacitor: ECQE2334KB
Purchase Panasonic ECQE2334KB polyester film capacitor online today. It offers excellent electrical performance, flame retardant coating, and reliable operation for your electronic projects. With a wide capacitance range and high voltage ratings, this capacitor ensures durability and safety. Whether for general-purpose applications or demanding circuits, buy now to enhance your device's performance with a trusted, RoHS-compliant component designed for stability and safety.
Buy Panasonic ECQE2334KB now and experience unmatched reliability and performance in electronic circuit applications.
Frequently Asked Questions
Where can I buy Panasonic ECQE2334KB?
You can click on the BUY or RFQ button to purchase ECQE2334KB from an authorized Panasonic distributor.
How do I troubleshoot issues or seek technical support for part ECQE2334KB?
You can download the ECQE2334KB datasheet or visit the Panasonic website for support.
Who is the manufacturer of ECQE2334KB?
Panasonic
