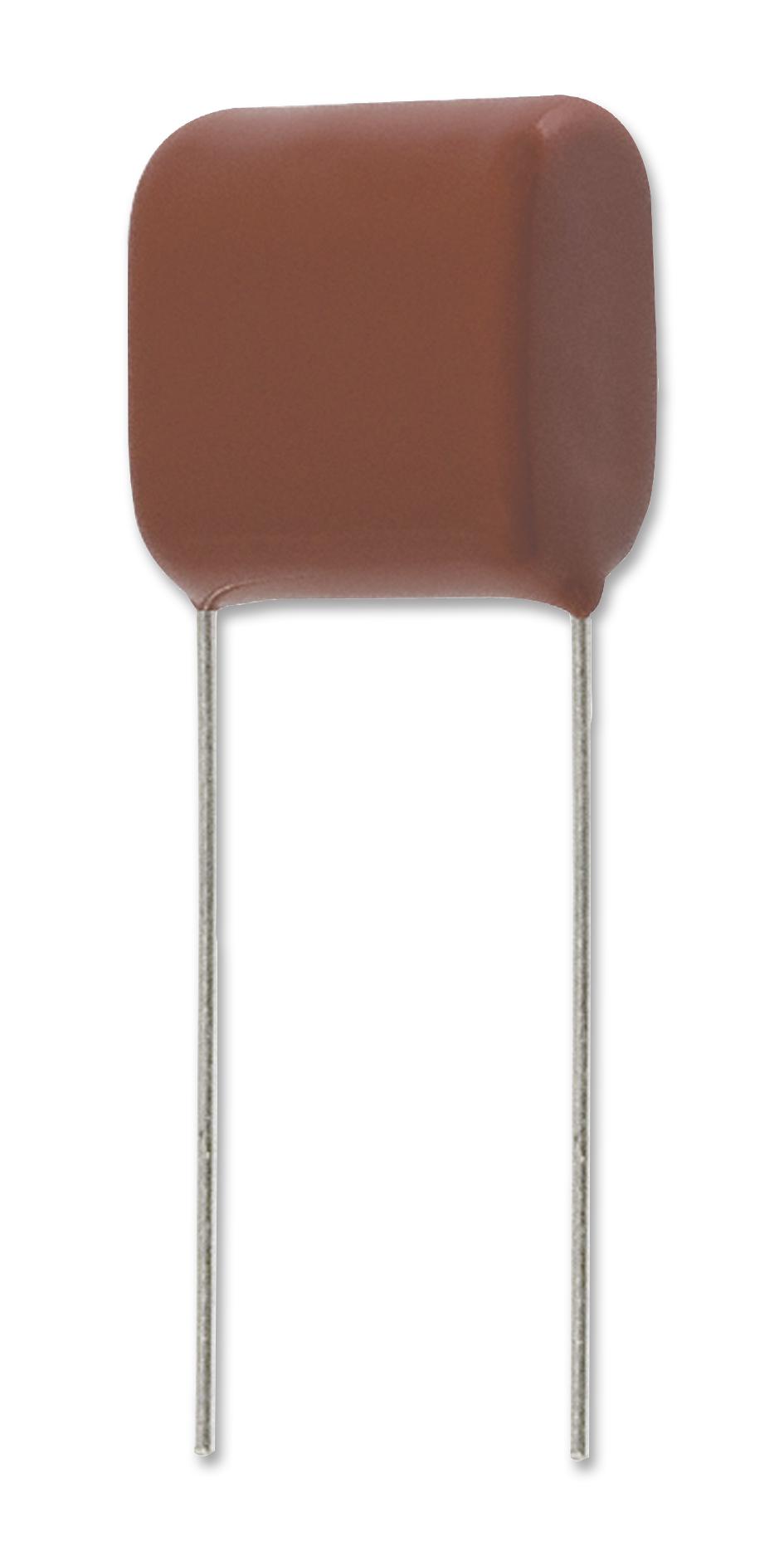

Panasonic ECQE2393JB Metallized Polyester Film Capacitor
The Panasonic ECQ-E2393JB is a metallized polyester film capacitor specifically engineered for noise suppression in automotive systems. Its non-inductive construction utilizes metallized polyester film encased in flame-retardant epoxy resin, ensuring robust performance and reliability. Key features include excellent water and corrosion resistance, a guaranteed operating temperature of 130°C, and RoHS compliance. This capacitor is suitable for a wide range of automotive applications where noise reduction and stable operation are critical. It is important to consult Panasonic for specific applications requiring special qualities or reliability.
Panasonic ECQE2393JB Metallized Polyester Film Capacitor Specifications:
- Rated Voltage: 250 V (Derating of rated voltage by 1.11 %/℃ at more than 85 ℃)
- Rated Capacitance: 0.47 μF, 2.2 μF, 4.7 μF
- Capacitance Tolerance: ±20 % (M)
- Dissipation Factor: ≦ 1.0 % (20 ℃, 1 kHz)
- Withstand Voltage: 250 V × 150 %, 60 s
- Insulation Resistance: ≧ 3000 MΩ ∙ μF (20 ℃, 100 V [DC], 60 s)
- Operating Temperature Range: −40 ℃ to +130 ℃
- Construction: Non-inductive construction using metallized polyester film with flame retardant epoxy resin.
