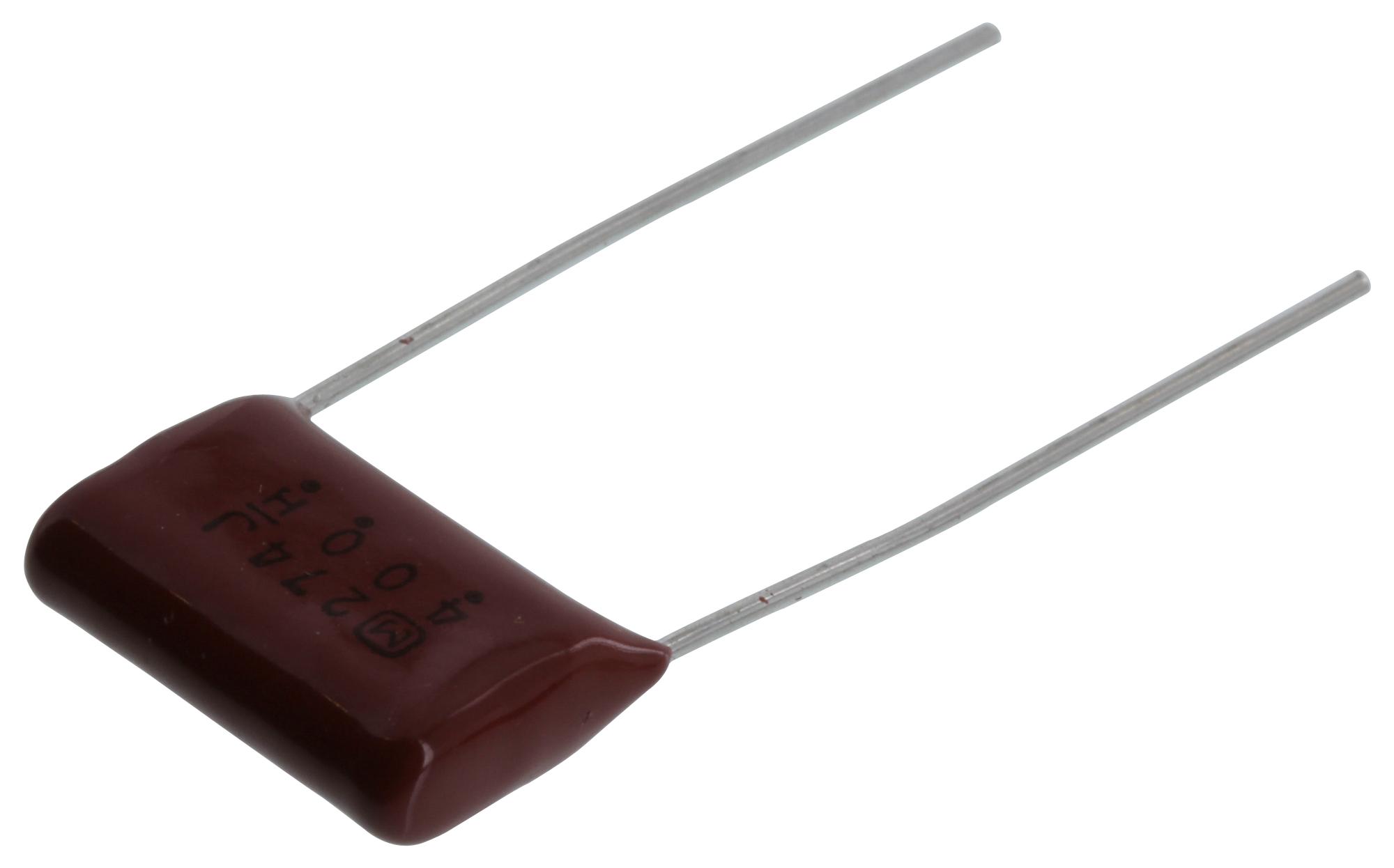

Panasonic ECQE4274JF Metallized Polyester Capacitor
The Panasonic Metallized Polyester Film Capacitor ECQE4274JF features non-inductive construction with flame retardant epoxy resin coating and self-healing properties. It offers excellent electrical characteristics suitable for general purpose applications, moisture resistance at 85°C and 85% RH over 500 hours, and complies with ROHS directives. Designed for reliable performance, this capacitor provides rated voltages up to 630 VDC and diverse capacitance ranges from 0.010 UF to 10 UF, with various tape and lead configurations for easy integration into electronic circuits and industrial devices.
Panasonic ECQE4274JF Metallized Polyester Capacitor Specifications:
- Dielectric: Metallized Polyester Film
- Rated Voltage: 630 VDC
- Capacitance Range: 0.010 UF to 10 UF (E12 series)
- Capacitance Tolerance: +5 % (J), +10 % (K)
- Temperature Range: -40 °C to +105 °C
- Dissipation Factor: ≤1.0 % at 20°C, 1 kHz
- Insulation Resistance: ≥9000 MΩ (for 0.33 UF and above)
- Withstand Voltage: Rated voltage × 150 % for 60s, or rated voltage × 230 % for AC applications
- Moisture Resistance: 85°C, 85 % RH for 500 hours
- Flame Retardant Coating: Epoxy resin
- Self-Healing Property: Yes
- Lead and Tape Configurations: Straight and crimped leads, tape styles for automatic insertion
Buy the Panasonic Series ECQE Capacitor: 630 VDC 0.47 UF
Purchase your Panasonic Metallized Polyester Film Capacitor ECQE4274JF online today and enjoy fast shipping and reliable quality for your electronic and industrial projects. Featuring a capacitance of 0.47 UF and rated at 630 VDC, this flame retardant capacitor offers excellent electrical characteristics, moisture resistance at 85°C and 85% RH over 500 hours, and self-healing properties. Ideal for general purpose applications, you can trust Panasonic’s durable design and compliance with ROHS standards to ensure safety and long-term performance in your circuits.
Order your Panasonic Series ECQE Capacitor with 0.47 UF, 630 VDC today and give your projects the dependable quality they deserve for reliable electrical performance.
Frequently Asked Questions
Where can I buy Panasonic ECQE4274JF?
You can click on the BUY or RFQ button to purchase ECQE4274JF from an authorized Panasonic distributor.
How do I troubleshoot issues or seek technical support for part ECQE4274JF?
You can download the ECQE4274JF datasheet or visit the Panasonic website for support.
Who is the manufacturer of ECQE4274JF?
Panasonic
