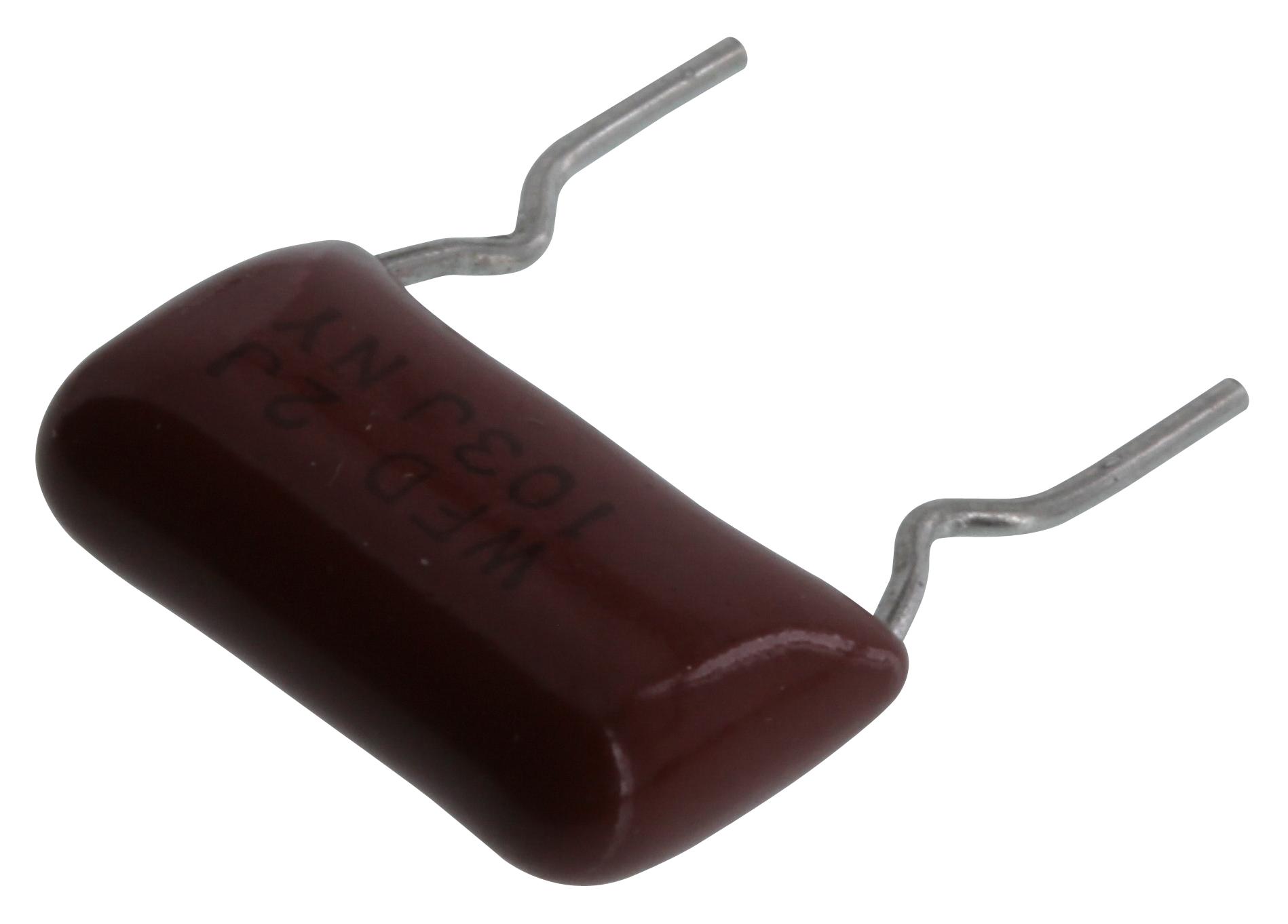

Panasonic ECWFD2J103JQ Polypropylene Film Capacitor
This metallized polypropylene film capacitor offers non-inductive construction, flame retardant epoxy coating, excellent high-frequency characteristics, and low loss. Ideal for active filter and high-frequency circuits, it complies with RoHS standards. It features small size, low hum noise, and high reliability, making it suitable for various electronic applications where stable frequency response and durability are required. This capacitor is designed with a wide temperature range and robust insulation resistance, ensuring performance in demanding environments and long service life for sophisticated electronic systems.
Panasonic ECWFD2J103JQ Polypropylene Film Capacitor Specifications:
- Category temperature range: -40°C to +110°C
- Rated voltage: 450V DC (65°C), 630V DC (70°C)
- Capacitance range: 0.01 pF to 4.7 μF
- Capacitance tolerance: ±5% (J), ±10% (K)
- Dissipation factor (tan δ): 0.1% (20°C, 1kHz)
- Withstand voltage: 1.5× rated voltage for 60 seconds
- Insulation resistance: >30,000 MΩ at 20°C
- Lead form: Straight, Crimped, Cut
- RoHS compliant, Flame-retardant epoxy resin coating
- Dimensions: varies with specific model, typical length approx. 15-20mm, diameter 10-15mm
- Peak-to-peak voltage applicable: less than 400 Vp-p at 630V, less than 240 Vp-p at 450V
- Self-heating temperature rise: specified per model, ensure surface temperature within limits during high-frequency operation
- Packaging: taping and bulk options, lead spacing as per tape style
Buy the Buy Panasonic Metallized Polypropylene Film Capacitor Part Number ECWFD2J103JQ Online
Purchase Panasonic ECWFD2J103JQ polypropylene film capacitor online for reliable high-frequency filtering, excellent frequency response, and RoHS compliance. Designed with flame retardant epoxy coating, compact size, and superior dielectric properties, it ensures stable operation in demanding electronic circuits. Ideal for active filters, high-frequency power supplies, and noise suppression circuits, this capacitor guarantees long-term durability, low noise, and excellent electrical characteristics. Buy online now for fast delivery and quality assurance for your electronic projects and manufacturing needs.
Get Panasonic ECWFD2J103JQ today—built for high-frequency performance and long-lasting durability.
Frequently Asked Questions
Where can I buy Panasonic ECWFD2J103JQ?
You can click on the BUY or RFQ button to purchase ECWFD2J103JQ from an authorized Panasonic distributor.
How do I troubleshoot issues or seek technical support for part ECWFD2J103JQ?
You can download the ECWFD2J103JQ datasheet or visit the Panasonic website for support.
Who is the manufacturer of ECWFD2J103JQ?
Panasonic
