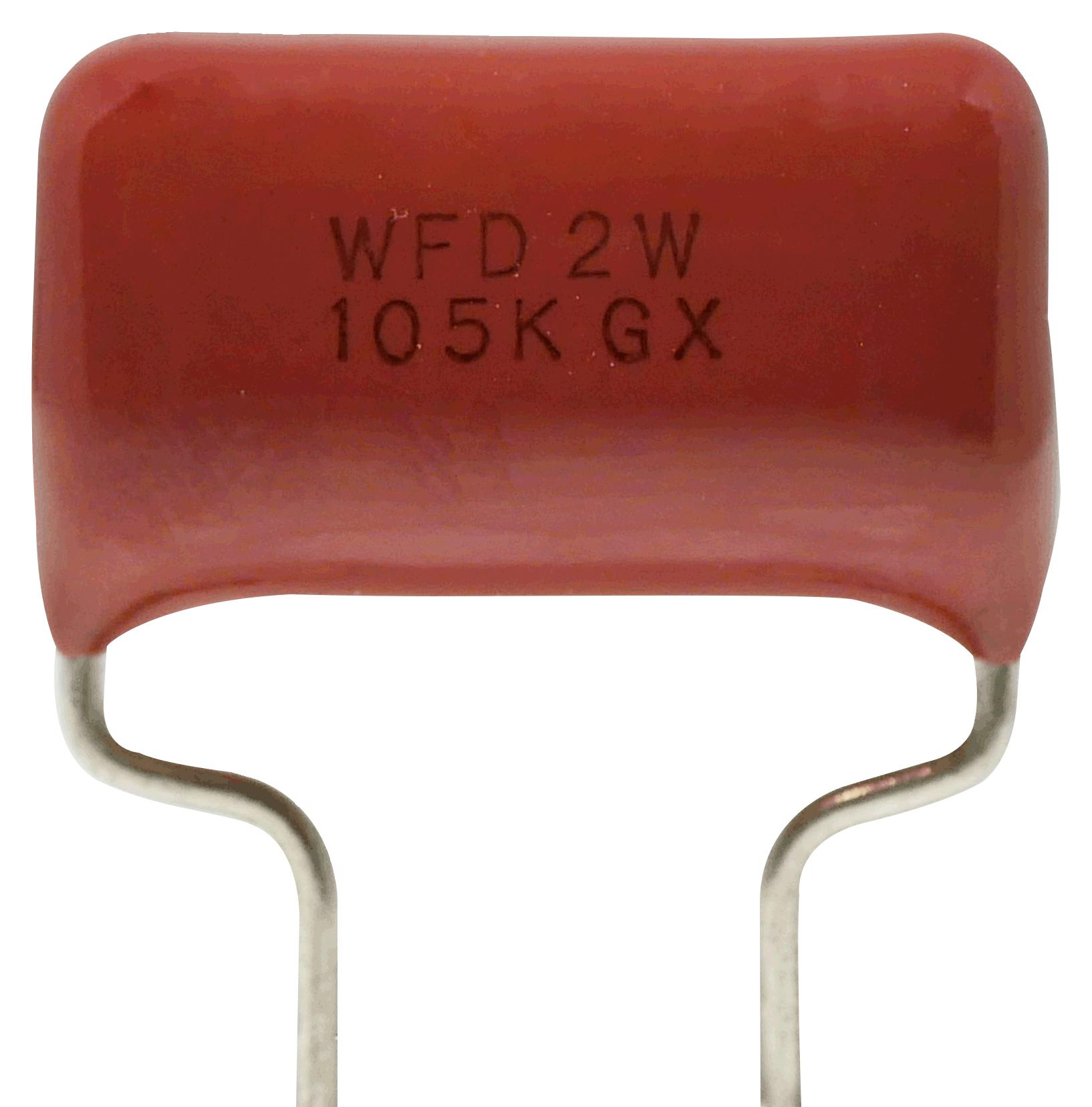

Panasonic ECWFD2W105JB Polypropylene Film Capacitor
The Metallized Polypropylene Film Capacitor from Panasonic's ECWFD series offers exceptional frequency characteristics, low loss, and non-inductive construction. Its flame-retardant epoxy resin coating enhances safety and reliability in high-frequency circuits and active filter applications. Compact and RoHS compliant, this capacitor is ideal for demanding industrial environments requiring stable performance, low hum sound noise, and resistance to flame and humidity. Suitable for use in power electronics, signal processing, and filtering, it ensures dependable operation with excellent electrical and physical stability over a broad temperature range.
Panasonic ECWFD2W105JB Polypropylene Film Capacitor Specifications:
- Category temperature range: -40°C to +110°C (450V), -40°C to +105°C (630V)
- Rated voltage: 450 V DC, 630 V DC
- Capacitance range: 0.01 pF to 4.7 μF
- Capacitance tolerance: +5% (J), +10% (K)
- Dissipation factor (tan δ): 0.1% at 20°C, 1 kHz
- Withstand voltage: 1.5 times rated voltage for 60 seconds
- Insulation resistance: >30,000 MΩ for ≥0.33 μF (450V), >10,000 MΩ for ≥0.33 μF (630V)
- Peak to peak voltage: < 400 Vp-p (450V), < 630 Vp-p (630V)
- Maximum surface temperature: 125°C (per dielectric type)
- Lead forms: Straight, Crimped, Cut, Tapings style for automatic insertion
- Material: Metallized polypropylene film with flame-retardant epoxy resin coating
- Compliance: RoHS, UL, CSA, EN standards
Buy the Panasonic ECWFD – Reliable Polypropylene Film Capacitor for Industrial Applications
Secure your Panasonic ECWFD series polypropylene film capacitor now with our easy online ordering. Designed for high-frequency filtering, power supply stabilization, and signal processing, this capacitor combines compact size, flame retardant epoxy coating, and RoHS compliance. Perfect for demanding industrial applications, it offers excellent thermal stability, low dissipation factor, and reliable withstand voltage. Get dependable performance, long-term stability, and safety assurance by ordering online today and enhance your electronic systems with Panasonic quality.
Order your Panasonic ECWFD series polypropylene film capacitor today and ensure high-performance, safety, and durability in your industrial projects.
Frequently Asked Questions
Where can I buy Panasonic ECWFD2W105JB?
You can click on the BUY or RFQ button to purchase ECWFD2W105JB from an authorized Panasonic distributor.
How do I troubleshoot issues or seek technical support for part ECWFD2W105JB?
You can download the ECWFD2W105JB datasheet or visit the Panasonic website for support.
Who is the manufacturer of ECWFD2W105JB?
Panasonic
