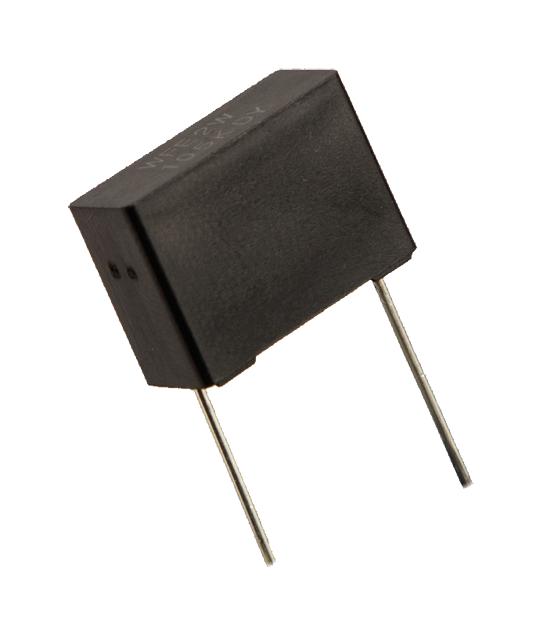

Panasonic ECWFE2J225K Polypropylene Film Capacitor
The metallized polypropylene film capacitor series offers compact size, excellent high-frequency characteristics, and low loss with non-inductive construction. Encased in flame-retardant plastic, these capacitors are ideal for active filter and high-frequency circuits, providing stable performance with RoHS compliance. Suitable for applications requiring reliable noise suppression, they feature wide temperature range from -55°C to +105°C, with rated voltages up to 630V DC. Proper handling precautions include avoiding physical damage, excessive force, and high-temperature soldering. Designed for safe operation in electronic devices, these capacitors ensure long-term stability in demanding environments.
Panasonic ECWFE2J225K Polypropylene Film Capacitor Specifications:
- Capacitance Range: 0.1 µF to 4.7 µF
- Rated Voltage: 450 V DC, 630 V DC
- Capacitance Tolerance: +5% (J), +10% (K)
- Category Temperature Range: -55°C to +105°C
- Dissipation Factor (tan δ): ≤0.1% (20°C, 1 kHz)
- Peak Voltage: 450V or 630V depending on series
- Insulation Resistance: ≥30,000 MΩ (for > 0.33µF at 20°C)
- Withstand Voltage: 1.5x Rated Voltage for 60 seconds
- Dimensions: Vary by capacitance and lead type, typical lengths 13-31 mm, heights 5-12 mm
- Flame Retardant Case: Yes, UL 94V-0 compliant
- RoHS compliant, suitable for noise suppression in electronic circuits
Buy the Buy Panasonic Metallized Polypropylene Film Capacitor Part Number ECWFE2J225K Online
Purchase your Panasonic metallized polypropylene film capacitor ECWFE2J225K online today and enjoy fast delivery and competitive pricing. Designed for high-frequency applications, this compact capacitor offers excellent stability, low loss, and flame retardant features ensuring safe operation in active filter and RF circuits. With a wide temperature range from -55°C to +105°C, rated voltages up to 630V DC, and RoHS compliance, it guarantees long-term performance. Ideal for noise suppression in electronic equipment, order now to upgrade your circuits with proven quality and efficiency.
Order your Panasonic Series ECWFE2J225K high-frequency film capacitor today and enhance your electronic projects with reliable noise filtering performance.
