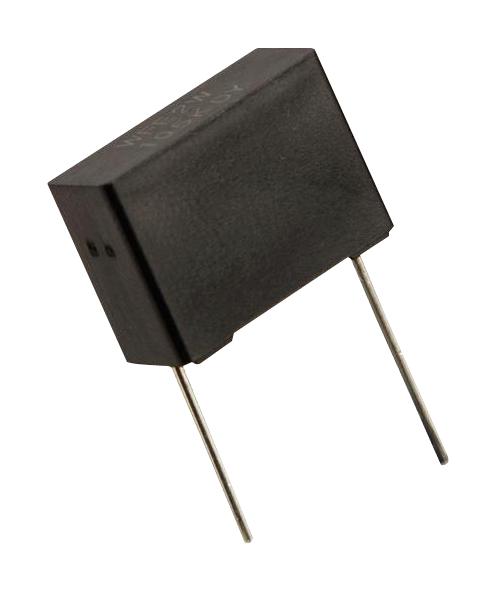

Panasonic ECWFE2J334QD High-Frequency Film Capacitor
Panasonic's Plastic Film Capacitors from the ECWFE Series are compact, non-inductive metallized polypropylene capacitors featuring flame retardant plastic cases. Designed for high-frequency and active filter circuits, these capacitors exhibit low loss, excellent frequency characteristics, and RoHS compliance. Available with various capacitance values and rated voltages up to 630 VDC, they are suitable for a range of industrial electronic applications. They provide reliable performance in environments requiring flame retardancy and low noise, making them ideal for modern electronic circuit designs.
Panasonic ECWFE2J334QD High-Frequency Film Capacitor Specifications:
- Dielectric: Metallized Polypropylene
- Construction: Non-inductive with flame retardant plastic case
- Rated Voltage: 450 VDC, 630 VDC
- Capacitance Range: 0.1 UF to 4.7 UF
- Capacitance Tolerance: +5%, +10%
- Temperature Range: -40°C to +105°C
- Capacitance Tolerance Code: J (+5%), K (+10%)
- Dissipation Factor (tan d): 0.1% at 20°C, 1 kHz
- Withstand Voltage: 1.5 times rated voltage for 60 seconds
- Insulation Resistance: 450 VDC - 60 MΩ, 630 VDC - 60 MΩ
- Dimensions vary with capacitance; typical length 13–26mm, height 10.5–19mm
- Lead Type: Straight or Cut lead with tin-plated copper-clad steel wire
- RoHS Compliant and flame retardant
Buy the Panasonic Series ECWFE Plastic Film Capacitor: ECWFE2J334QD
Discover the Panasonic ECWFE2J334QD high-frequency metallized polypropylene film capacitor, ideal for active filter circuits and high-frequency applications. Featuring a flame retardant plastic case, low loss, and RoHS compliance, this compact capacitor provides exceptional performance and durability for industrial electronics. With capacitance values from 0.1 UF to 4.7 UF and rated voltages up to 630 VDC, it ensures reliable operation in demanding environments. Easy to install with straight or cut leads, it is the perfect choice for modern electronic circuit design and manufacturing.
Buy Panasonic ECWFE2J334QD now and experience unmatched reliability and performance in high-frequency filter and industrial electronic applications.
Frequently Asked Questions
Where can I buy Panasonic ECWFE2J334QD?
You can click on the BUY or RFQ button to purchase ECWFE2J334QD from an authorized Panasonic distributor.
How do I troubleshoot issues or seek technical support for part ECWFE2J334QD?
You can download the ECWFE2J334QD datasheet or visit the Panasonic website for support.
Who is the manufacturer of ECWFE2J334QD?
Panasonic
