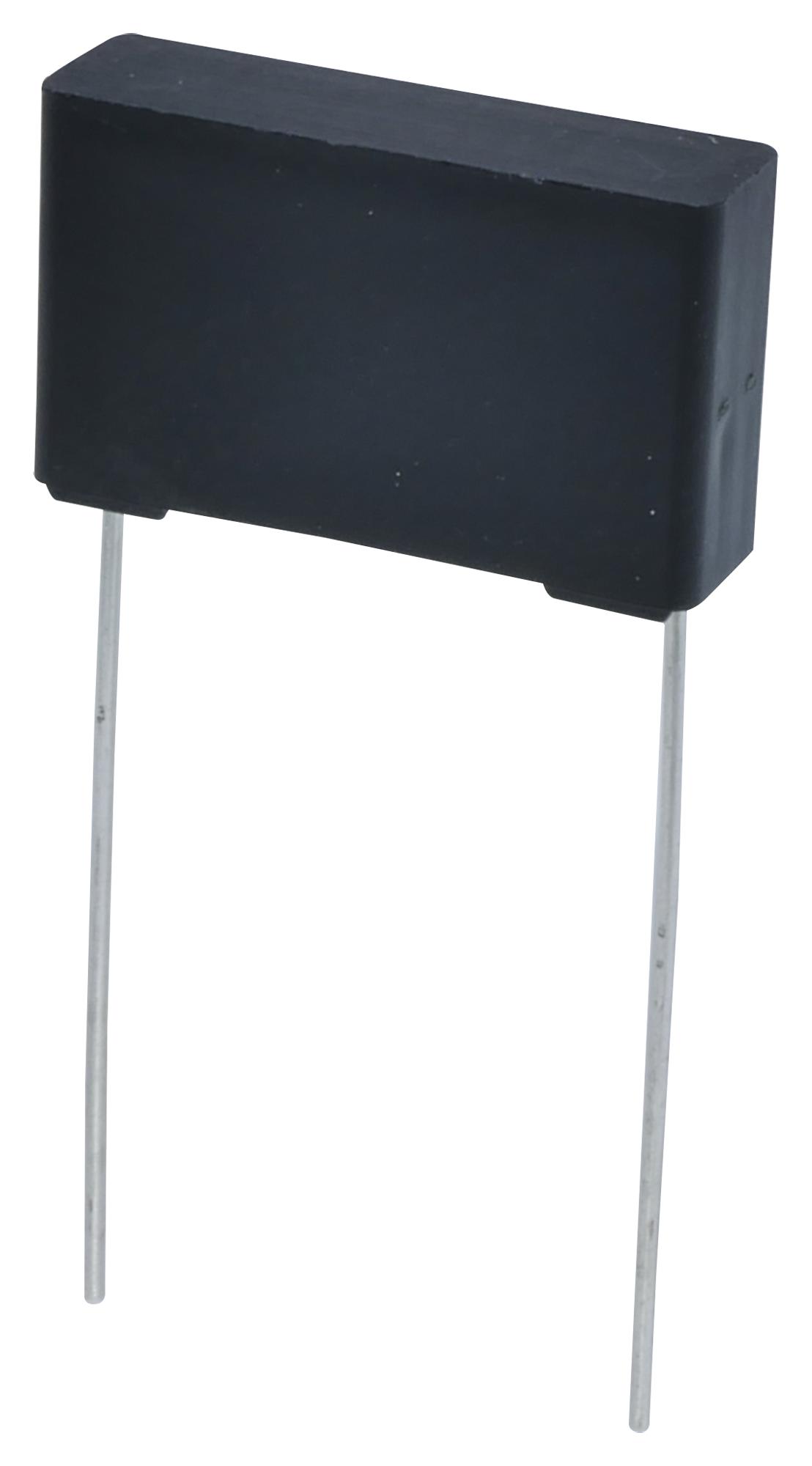

Panasonic ECWFE2J474P5 Polypropylene Film Capacitor
Panasonic's ECWFE Series plastic film capacitors are metallized polypropylene components designed for high-frequency filtering and active circuit applications. Featuring non-inductive construction, flame retardant plastic cases, and RoHS compliance, these capacitors deliver low loss, excellent frequency response, and minimal noise. Suitable for use in active filters and high-frequency circuits, they offer stable performance across a temperature range of -40°C to +105°C. Compact and reliable, they meet safety standards while providing precise capacitance and high withstand voltage for demanding electronic applications.
Panasonic ECWFE2J474P5 Polypropylene Film Capacitor Specifications:
- Capacitance range: 0.10 μF to 4.7 μF
- Rated voltage: 450 V.DC, 630 V.DC
- Capacitance tolerance: +5% (J), +10% (K)
- Temperature range: -40°C to +105°C
- Dissipation factor: tan d ≤ 0.1% at 20°C, 1 kHz
- Insulation resistance: 450 V.DC (≥ 60,000 MΩ), 630 V.DC (≥ 100,000 MΩ)
- Peak voltage: Less than 450 V.DC for 450 V model, less than 630 V.DC for 630 V model
- Dimensions vary with capacitance, typical length 13-26 mm, width 5-16 mm, height 10-25 mm
- RoHS compliant, flame retardant plastic case, non-inductive construction, low loss, and excellent frequency characteristics
- Lead forms: Straight or cut leads with tin-plated copper-clad steel wire, typical ins. thickness 0.6-0.8 mm
Buy the Panasonic Series ECWFE Plastic Film Capacitors: ECWFE2J474P5
Order the Panasonic ECWFE Series ECWFE2J474P5 polypropylene film capacitor online today. This high-frequency component features metallized polypropylene construction, flame retardant plastic case, and RoHS compliance. Ideal for active filters and high-frequency circuits, it provides stable capacitance from 0.10 μF to 4.7 μF with rated voltages of 450 V.DC and 630 V.DC. Its compact design, high insulation resistance, and low loss ensure excellent performance, making it a reliable choice for demanding electronic applications.
Buy Panasonic ECWFE Series ECWFE2J474P5 high-frequency polypropylene capacitor now and experience unmatched reliability and performance in your active filter and high-frequency circuit designs.
Frequently Asked Questions
Where can I buy Panasonic ECWFE2J474P5?
You can click on the BUY or RFQ button to purchase ECWFE2J474P5 from an authorized Panasonic distributor.
How do I troubleshoot issues or seek technical support for part ECWFE2J474P5?
You can download the ECWFE2J474P5 datasheet or visit the Panasonic website for support.
Who is the manufacturer of ECWFE2J474P5?
Panasonic
