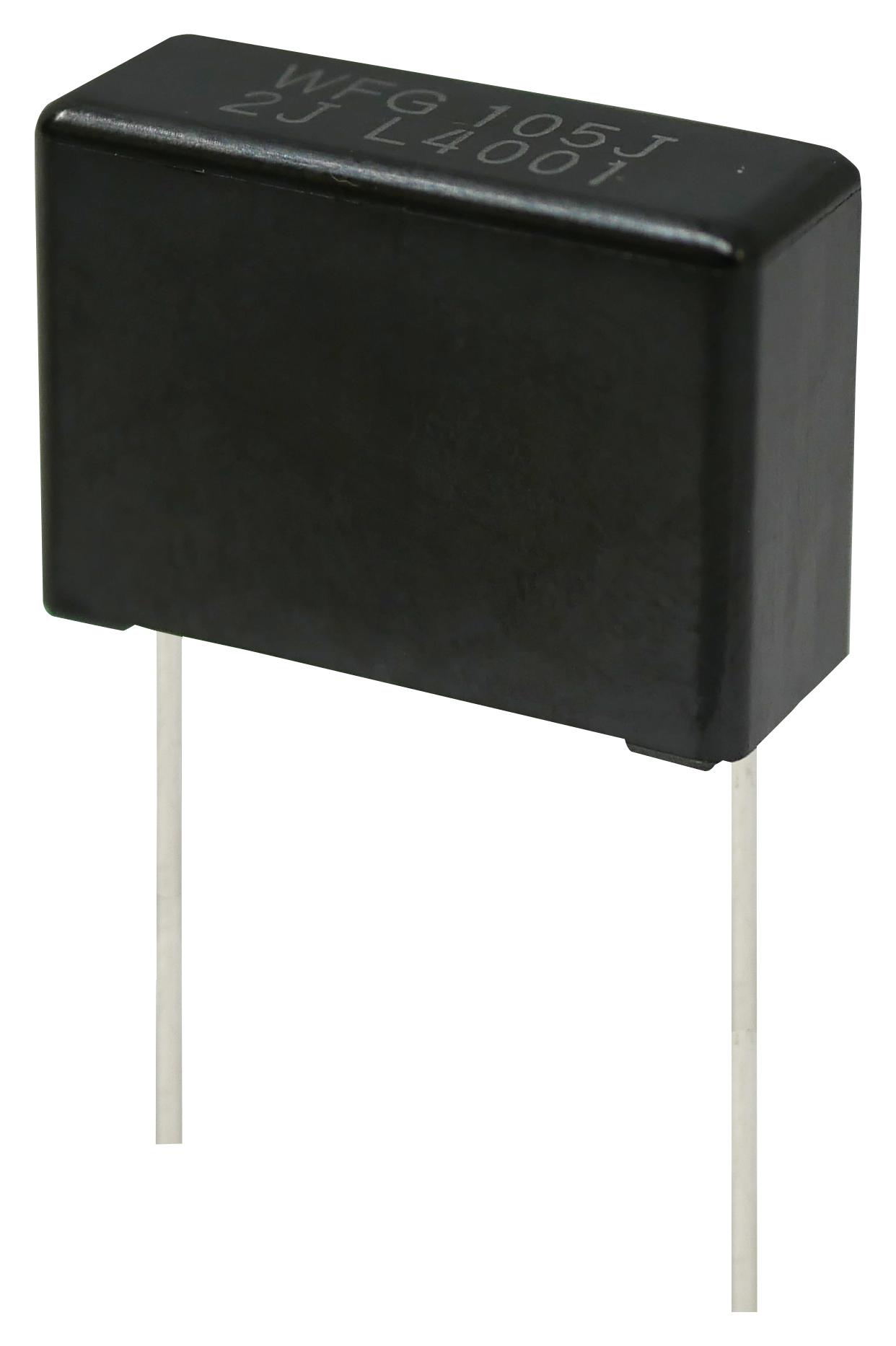

Panasonic ECWFG2J105KA Automotive Film Capacitor
The Panasonic metallized polypropylene film capacitor is designed for automotive and high-frequency circuits, featuring non-inductive construction, flame retardant case, and high moisture resistance. Rated from 600V to 1100V with various capacitance values and tolerances, it withstands high thermal shock, temperature loads up to 125°C, and complies with safety standards like AEC-Q200 and RoHS. Suitable for DC/DC, AC/DC converters, and high-current applications, it offers reliable performance in harsh environments with stable electrical characteristics.
Panasonic ECWFG2J105KA Automotive Film Capacitor Specifications:
- Rated Voltage: 600 V to 1100 V (derated by 1.0%/°C above 85°C)
- Capacitance Range: 1.0 pF to 12.0 uF depending on series and voltage
- Capacitance Tolerance: ±5% (J), ±10% (K)
- Dielectric: Metallized polypropylene film
- Lead Pitch: 22.5 mm, 27.5 mm, or 30 mm options
- Dimensions vary by capacitance and voltage, typical length 27-31.5 mm
- Temperature Range: -55°C to +125°C with stable electrical characteristics
- Dissipation Factor (tan δ): ≤0.1%, at 20°C, 1 kHz
- Insulation Resistance (IR): ≥3,000 MΩ•μF at 20°C, 500 V DC
- Withstand Voltage: Rated voltage x 1.5 for 60 seconds
- Certifications: UL, CSA, EN 60384, RoHS, AEC-Q200 compliant
- Durability: High thermal shock resistance (600 to 1100 V, -55°C to +85°C, 1000 cycles), high moisture resistance, flame retardant resin case
Buy the Panasonic ECWFG Series – Reliable Automotive Capacitors for Industrial Applications
Order Panasonic automotive film capacitors online today and benefit from high safety, moisture resistance, and stable electrical performance. Designed for high frequency and high current applications, these capacitors are perfect for DC/DC and AC/DC converters. With flame-retardant case and adherence to safety standards like AEC-Q200 and RoHS, they offer excellent durability under extreme temperatures from -55°C to +125°C. Experience seamless online purchase with fast delivery and expert support to ensure your high-reliability electronic projects or automotive systems operate flawlessly.
Buy Panasonic ECWFG automotive capacitors now and experience unmatched reliability and high performance in challenging environments.
Frequently Asked Questions
Where can I buy Panasonic ECWFG2J105KA?
You can click on the BUY or RFQ button to purchase ECWFG2J105KA from an authorized Panasonic distributor.
How do I troubleshoot issues or seek technical support for part ECWFG2J105KA?
You can download the ECWFG2J105KA datasheet or visit the Panasonic website for support.
Who is the manufacturer of ECWFG2J105KA?
Panasonic
