Panasonic ERJB1BFR82U High Power Chip Resistor
High Power Chip Resistors with wide terminal construction designed for automotive and industrial applications. These resistors offer excellent heat dissipation and reliable solder joints, meeting AEC-Q200 standards and RoHS compliance. Suitable for automotive ECUs, airbag systems, and current sensing in power supply circuits, they feature embossed carrier taping for easy automated assembly. The series includes various resistance values with tight tolerances, optimized for high-temperature environments and demanding electrical conditions, ensuring durability and consistent performance in critical applications.
Panasonic ERJB1BFR82U High Power Chip Resistor Specifications:
- Resistance values: 10mΩ to 10kΩ, tolerance: ±1%, ±2%, ±5%
- Power ratings: 0.75W, 1W, 1.5W, 2W depending on series
- Rated ambient temperature: -55°C to +125°C
- Maximum overload voltage: 70V to 200V according to series
- Dimension: Length varies from 2.50 mm to 6.40 mm, width from 0.20 mm to 0.20 mm, height from 0.25 mm to 0.70 mm
- Construction: Thick film resistor with alumina substrate and wide terminal leads
- Compliance: AEC-Q200, RoHS
- Package: Embossed carrier taping for automated mounting
- Solderability: Standard industrial soldering conditions, no reflow damage
- Durability: Tested for moisture, thermal cycling, and mechanical shock resistance up to 1000 cycles
- Features: Wide terminal construction enhances heat dissipation and solder joint reliability
- Application: Automotive ECUs, electronic circuits, current sensing, safety systems
- Certification: RoHS compliant, AEC-Q200 tested
- Operating Temperature Range: -55°C to +125°C
- Resistance tolerance code representation: 3 digits or letters
- Packaging: Taping with 4 mm pitch, 4000-5000 pcs per reel

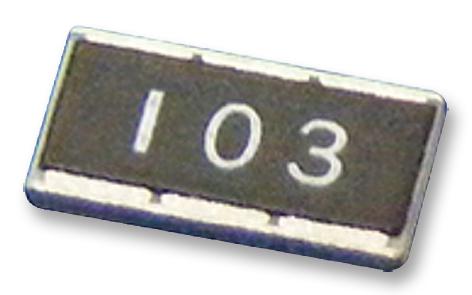

Buy the Buy Panasonic High Power Chip Resistors Part Number ERJB1BFR82U Online
Order Panasonic ERJB series high power chip resistors online to ensure high reliability and excellent heat dissipation in automotive and industrial applications. These resistors, featuring wide terminal construction, provide outstanding solder joint stability and thermal management. Suitable for critical circuits such as ECUs, safety systems, and current sensing in power supplies, they adhere to strict AEC-Q200 standards and RoHS compliance. Easy to mount via embossed carrier taping, they guarantee durability across diverse operating conditions, making them essential components for high-performance electronic systems.
Buy Panasonic ERJB1BFR82U high power chip resistors now and experience unmatched reliability and thermal performance for automotive and industrial electronics.
Frequently Asked Questions
Where can I buy Panasonic ERJB1BFR82U?
You can click on the BUY or RFQ button to purchase ERJB1BFR82U from an authorized Panasonic distributor.
How do I troubleshoot issues or seek technical support for part ERJB1BFR82U?
You can download the ERJB1BFR82U datasheet or visit the Panasonic website for support.
Who is the manufacturer of ERJB1BFR82U?
Panasonic
