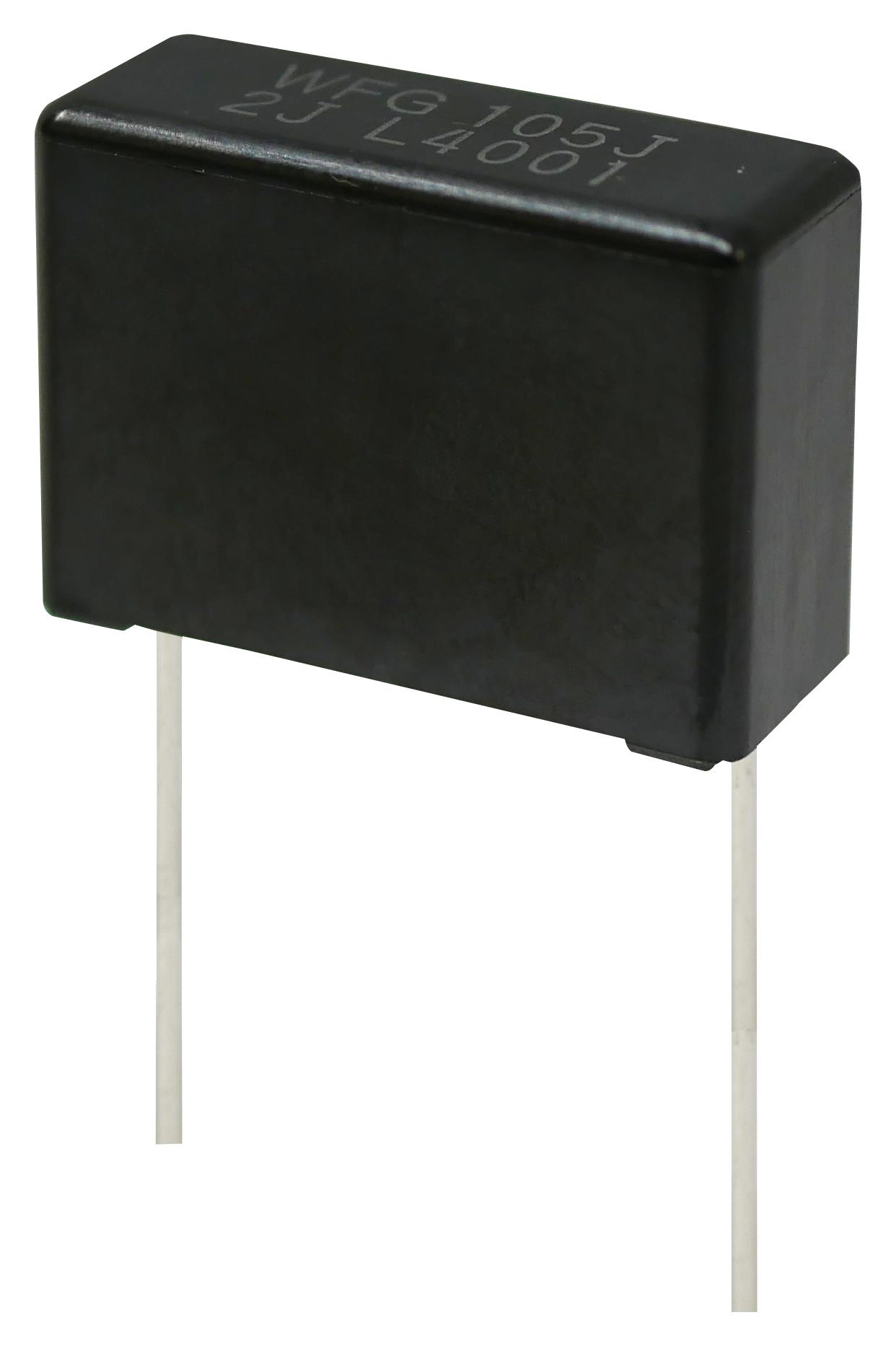

Panasonic ECWFG2J305J Metallized Polypropylene Film Capacitor
The metallized polypropylene film capacitor in the ECWFG series is designed for automotive and high-frequency applications. Featuring non-inductive construction with flame retardant plastic case, it offers high safety, moisture resistance, thermal shock resistance, and high temperature load capacity. The series complies with AEC-Q200 and RoHS standards, making it suitable for DC/DC and AC/DC converter circuits, especially in xEV. Rated voltages range from 600 V to 1100 V, with capacitance from 0.0002 to 12.0 μF, and it is available with straight or cut leads for flexible mounting options.
Panasonic ECWFG2J305J Metallized Polypropylene Film Capacitor Specifications:
- Rated voltage: 600 V to 1100 V DC
- Capacitance: 0.0002 μF to 12.0 μF
- Capacitance tolerance: +5% (J), +10% (K)
- Lead pitch: 22.5 mm or 27.5 mm
- Operating temperature: -40°C to +110°C
- Insulation resistance: 3,000 MΩ·μF (20°C, 500 V DC, 60s)
- Dissipation factor (tan δ): ≤ 0.1% at 20°C, 1 kHz
- Impact resistance: high thermal shock resistance (600-1100 V, -55°C to 85°C, 1000 cycles)
- Flame-retardant plastic case, RoHS and AEC-Q200 compliant
- Dimensions vary with voltage and capacitance, available with straight or cut leads for diverse mounting options.
Buy the Buy Panasonic Metallized Polypropylene Film Capacitor ECWFG Series Part Number ECWFG2J305J Online
Enhance your electronic projects with this high-quality metallized polypropylene film capacitor, rated at 600V to 1100V DC, ideal for automotive and high-frequency circuits. Featuring flame retardant case, moisture resistance, and RoHS compliance, it offers exceptional safety and durability. With capacitance options from 0.0002 to 12.0 μF and dimensions adaptable via lead pitch, this capacitor is perfect for DC/DC and AC/DC converters, ensuring reliable operation in demanding environments. Purchase online now for quality and peace of mind.
Buy Panasonic ECWFG2J305J now and experience unmatched reliability and performance in high-frequency automotive circuits.
Frequently Asked Questions
Where can I buy Panasonic ECWFG2J305J?
You can click on the BUY or RFQ button to purchase ECWFG2J305J from an authorized Panasonic distributor.
How do I troubleshoot issues or seek technical support for part ECWFG2J305J?
You can download the ECWFG2J305J datasheet or visit the Panasonic website for support.
Who is the manufacturer of ECWFG2J305J?
Panasonic
