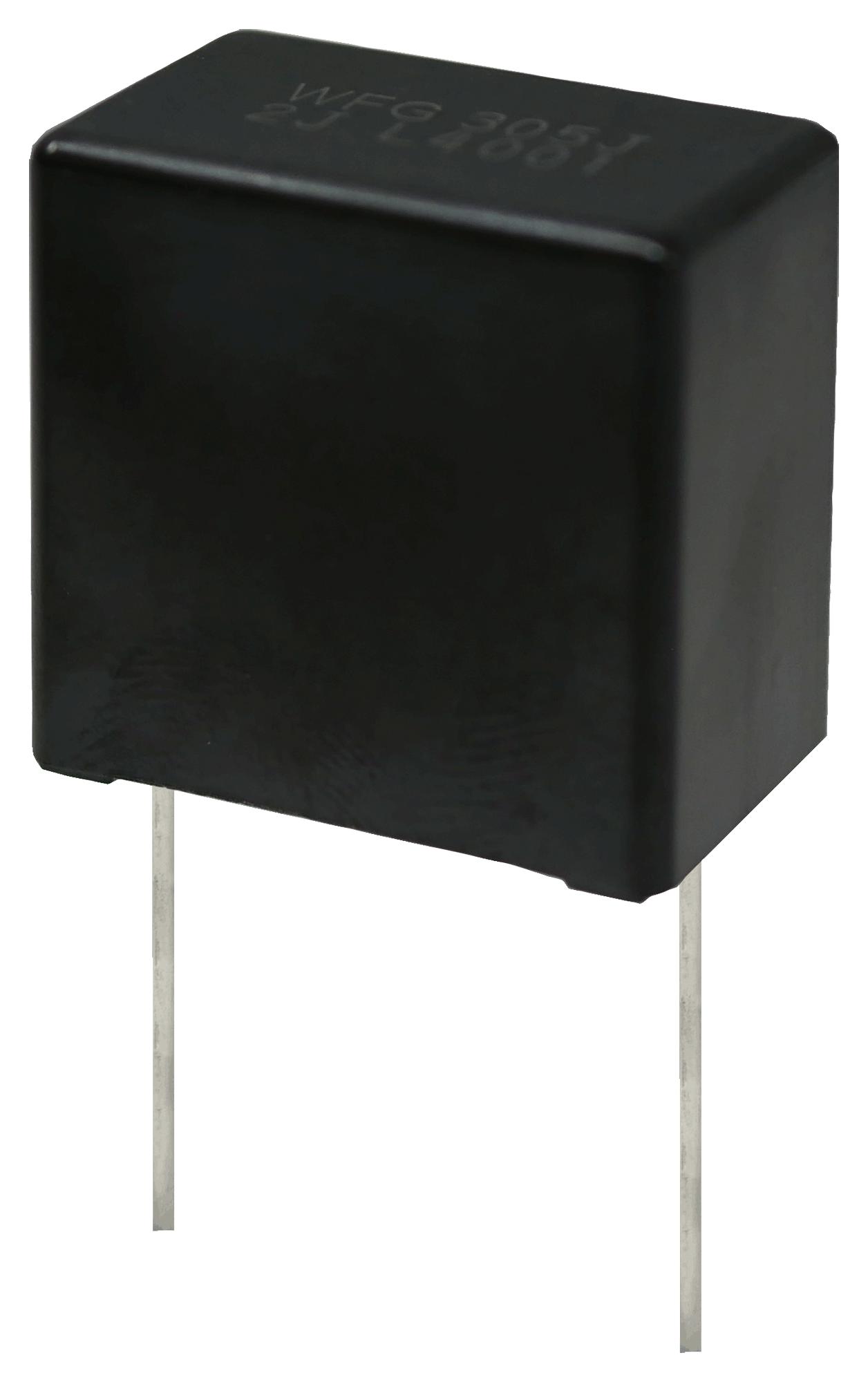

Panasonic ECWFG2J305Q1 Metallized Polypropylene Film Capacitor
The metallized polypropylene film capacitor series is designed for automotive and industrial applications, featuring non-inductive construction, flame-retardant plastic case, high moisture resistance, and high thermal shock resistance. These capacitors are suitable for DC/DC, AC/DC converters, high-frequency, and high-current circuits, with voltages ranging from 600 V to 1100 V and capacitance from 1.0 pF to 12.0 μF. They are compliant with safety standards, RoHS, and AEC-Q200, ensuring reliability in demanding environments.
Panasonic ECWFG2J305Q1 Metallized Polypropylene Film Capacitor Specifications:
- Rated voltage: 600 V to 1100 V (derating at >85°C)
- Capacitance: 1.0 pF to 12.0 μF
- Tolerance: ±5% (J), ±10% (K)
- Leakage current: within specified limits
- Temperature range: -55°C to +110°C surface temperature
- Imp -edance: low impedance at high frequencies
- Insulation resistance: ≥3,000 MΩ-μF at 20°C, 500 V DC
- Dissipation factor (tan δ): ≤0.1% at 20°C, 1kHz
- Dimensions: detailed per series, lead pitch 22.5mm
- Compliance: RoHS, AEC-Q200, UL, CSA
- Physical case: flame-retardant plastic, non-flammable resin
- Design: non-inductive, flame-retardant epoxy coating
Buy the Panasonic ECWFG Series Metallized Polypropylene Film Capacitor for Industrial Applications
Purchase Panasonic ECWFG series metallized polypropylene film capacitors online today to enhance your power conversion and high-frequency circuit performance. With high voltage ratings, flame-retardant case, moisture resistance, and compliance with safety standards, these capacitors deliver dependable operation in demanding environments. Ideal for DC/DC, AC/DC converters, and high-current applications, they ensure stability, safety, and longevity. Buying online guarantees quick delivery, authentic products, and technical support for your industrial or automotive power needs.
Order your Panasonic ECWFG automotive and industrial film capacitors today and ensure high reliability, safety, and performance in critical power circuits.
Frequently Asked Questions
Where can I buy Panasonic ECWFG2J305Q1?
You can click on the BUY or RFQ button to purchase ECWFG2J305Q1 from an authorized Panasonic distributor.
How do I troubleshoot issues or seek technical support for part ECWFG2J305Q1?
You can download the ECWFG2J305Q1 datasheet or visit the Panasonic website for support.
Who is the manufacturer of ECWFG2J305Q1?
Panasonic
