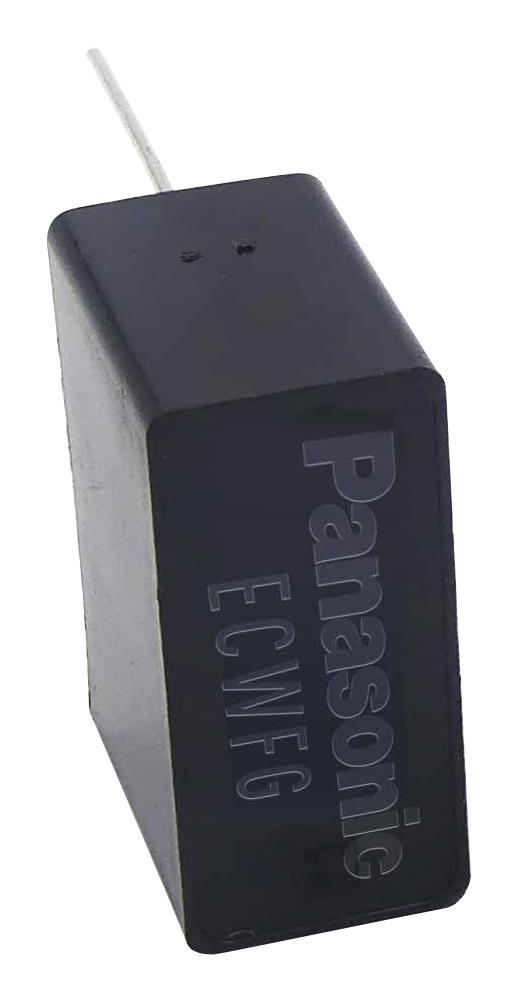

Panasonic ECWFG60825J High-Voltage Film Capacitor
The ECWFG series of Panasonic plastic film capacitors are high-voltage, metallized polypropylene film components designed for demanding industrial and automotive applications. With ratings up to 1100 V DC and models for various capacitance values, these capacitors feature non-inductive construction, flame-retardant plastic cases, and excellent moisture and thermal shock resistance. Suitable for DC/DC, AC/DC converters, and high-frequency circuits, they offer robust performance, safety compliance, and reliable operation in challenging environments. Their compact design ensures easy integration into electronic systems requiring high reliability and stability.
Panasonic ECWFG60825J High-Voltage Film Capacitor Specifications:
- Rated voltage: 600 V to 1100 V DC
- Capacitance range: 0.0001 µF to 12.0 µF
- Temperature range: -55°C to +85°C (up to 105°C for some models with derating)
- Capacitance tolerance: ±5% (J), ±10% (K)
- Dielectric: Metallized polypropylene film
- Case: Flame-retardant plastic, non-flammable resin
- Lead pitch: 22.5 mm, 27.5 mm
- Maximum allowable pulse dV/dt: specific values per model, up to 10,000 cycles
- Insulation resistance: ≥ 3,000 MΩ-μF at 20°C, 500 V DC
- Dissipation factor: ≤ 0.1% at 20°C, 1 kHz
- Compliance: RoHS, AEC-Q200
- Application: High frequency, high current power supplies, automotive circuits, DC/DC converters
Buy the Panasonic ECWFG – Reliable High-Voltage Film Capacitors for Industrial Applications
Purchase Panasonic ECWFG series high-voltage film capacitors online today to ensure your electrical systems operate with unmatched reliability and safety. Designed for demanding industrial and automotive applications, these capacitors feature high voltage ratings up to 1100 V DC, excellent moisture resistance, and flame-retardant cases. Their compact, robust construction makes them ideal for high-frequency, high-current power circuits, DC/DC converters, and safety-critical environments. Experience superior quality, compliance with RoHS and AEC-Q200, and fast delivery by ordering now.
Buy Panasonic ECWFG high-voltage film capacitors now and ensure reliable performance in demanding industrial and automotive circuits with safe, durable design.
Frequently Asked Questions
Where can I buy Panasonic ECWFG60825J?
You can click on the BUY or RFQ button to purchase ECWFG60825J from an authorized Panasonic distributor.
How do I troubleshoot issues or seek technical support for part ECWFG60825J?
You can download the ECWFG60825J datasheet or visit the Panasonic website for support.
Who is the manufacturer of ECWFG60825J?
Panasonic
