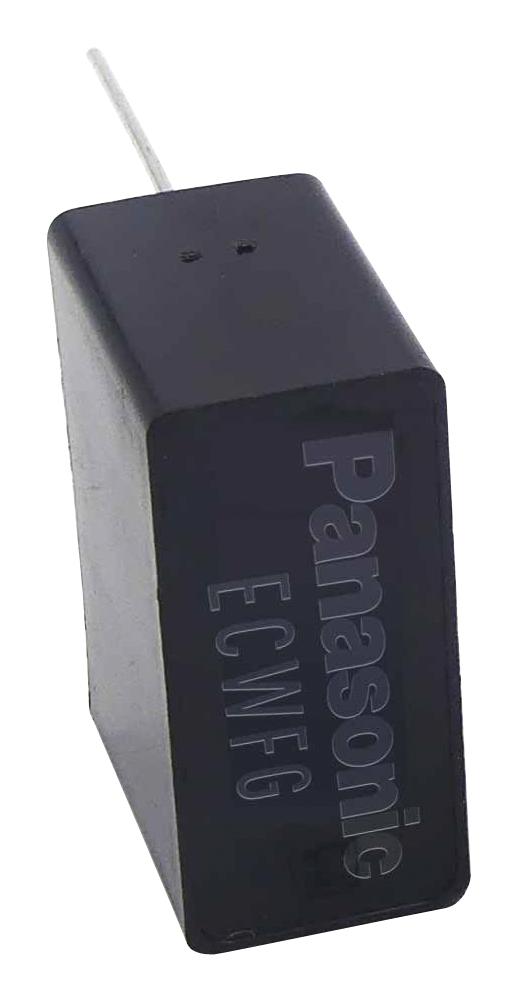

Panasonic ECWFG60905JA High-Voltage Film Capacitor
The ECWFG series from Panasonic offers high-voltage metallized polypropylene film capacitors designed for industrial use, automotive applications, and high-frequency circuits. These capacitors feature non-inductive construction, flame-retardant cases, and high moisture and thermal shock resistance. Rated for voltages from 600V to 1100V, they comply with AEC-Q200 and RoHS standards, supporting demanding conditions such as high temperature loads and safety functions. Ideal for DC/DC, AC/DC converters, and high current circuits in stringent environments, they deliver reliable performance with excellent environmental resilience.
Panasonic ECWFG60905JA High-Voltage Film Capacitor Specifications:
- Rated voltage: 600V to 1100V DC, derating above 85°C by 1.25%/°C
- Capacitance range: 1.0 pF to 12.0 μF depending on series
- Capacitance tolerance: ±5% (J), ±10% (K)
- Dielectric material: Metallized polypropylene
- Temperature range: -55°C to +85°C, surface temperature
- Imp: Frequency response from 1Hz to 10000Hz, impedance decreases with frequency
- Dissipation factor: ≤0.1% at 20°C, 1kHz, varies with temperature
- Insulation resistance: ≥3000 MΩ-μF at 20°C, 500V DC
- Permissible ripple and pulse currents depend on voltage, frequency, and temperature
- Compliance: AEC-Q200, RoHS, flame retardant case, non-inductive construction
- Support high thermal shock resistance (up to 1000 cycles)
- Designed for high safety, moisture resistance, and high temperature load resistance
- Suitable for DC/DC, AC/DC converters, high frequency, and high current circuits in industrial and automotive environments
Buy the Panasonic ECWFG60905JA – Reliable High-Voltage Film Capacitor for Industrial Applications
Purchase Panasonic ECWFG60905JA online today. This high-voltage metallized polypropylene film capacitor is engineered for industrial and automotive environments, offering exceptional safety, moisture resistance, and thermal shock tolerance. With voltages up to 1100V DC, it supports high-frequency and high-current applications in demanding conditions. Certified with AEC-Q200 and RoHS, it guarantees reliable operation with flame-retardant, non-inductive construction. Improve your electronic circuits' performance and safety by ordering this robust component today for smooth, dependable operation.
Buy Panasonic ECWFG60905JA now and experience unmatched reliability and high-performance in demanding industrial and automotive circuits.
Frequently Asked Questions
Where can I buy Panasonic ECWFG60905JA?
You can click on the BUY or RFQ button to purchase ECWFG60905JA from an authorized Panasonic distributor.
How do I troubleshoot issues or seek technical support for part ECWFG60905JA?
You can download the ECWFG60905JA datasheet or visit the Panasonic website for support.
Who is the manufacturer of ECWFG60905JA?
Panasonic
