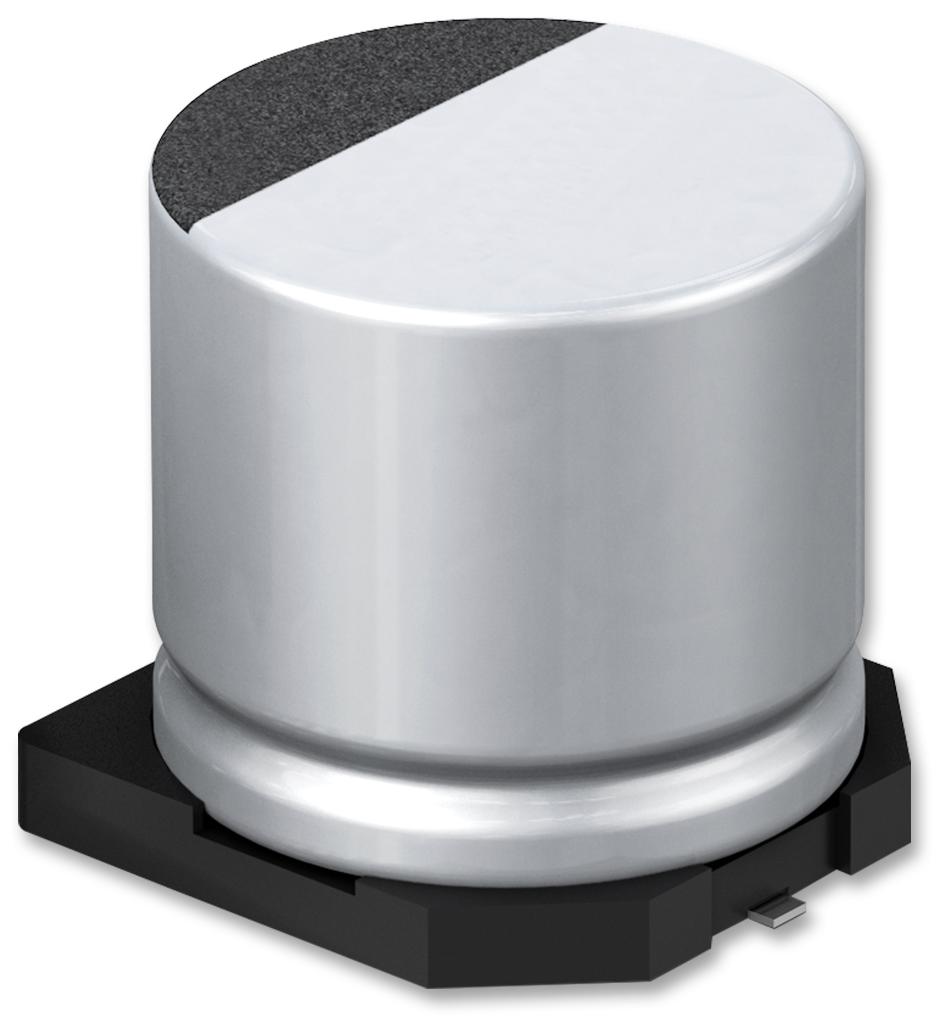

Panasonic EEETP1K681V Aluminum Electrolytic Capacitor
Panasonic's EEE-TP1K681V is a medium-size, high-temperature aluminum electrolytic capacitor ideal for various industrial applications. It's designed with a lead-free reflow process and offers enhanced performance characteristics such as high ripple current, low ESR, and large capacitance compared to standard series. The capacitor is AEC-Q200 compliant and RoHS compliant, ensuring reliability and environmental responsibility. Its vibration-proof design and endurance at 125°C make it suitable for demanding environments.
Panasonic EEETP1K681V Aluminum Electrolytic Capacitor Specifications:
- Endurance: 125 ℃ 3000 to 4000 h
- Ripple Current: 2 to 5 times as high as TK series
- ESR: 40 to 70 % lower than TK series
- Capacitance: Up to 80 % larger than TK series
- Vibration: 30G guaranteed
- AEC Compliance: AEC-Q200 compliant
- RoHS: RoHS compliant
- Rated Voltage Range: 25 V to 80 V
- Capacitance Range: 390μF to 3300μF
- Capacitance Tolerance: ±20 %(120 Hz/+20 ℃)
- Leakage Current: I ≦ 0.01 CV（μA）After 2 minutes
- Dissipation Factor: Please see the attached characteristics list
- Impedance Ratio: Z(–25 ℃) /Z(+20 ℃) = 2
- Impedance Ratio 2: Z(–40 ℃) /Z(+20 ℃) = 4
- Capacitance Change Endurance: Within ±30 % of the initial value (35 V or less : Within ±35 %)
- Dissipation Factor Endurance: ≦ 300 % of the initial limit
- Shelf Life: After storage for 1000 hours at +125 ℃ ± 2 ℃
- Capacitance Change Soldering Heat: Within ±10 % of the initial value
- Dissipation Factor Soldering Heat: Within the initial limit
- Leakage Current Soldering Heat: Within the initial limit
- Frequency Correction Factor (120 Hz): 0.75
- Frequency Correction Factor (1 k Hz): 0.90
- Frequency Correction Factor (10 k Hz): 0.95
- Frequency Correction Factor (100 k Hz): 1.00
