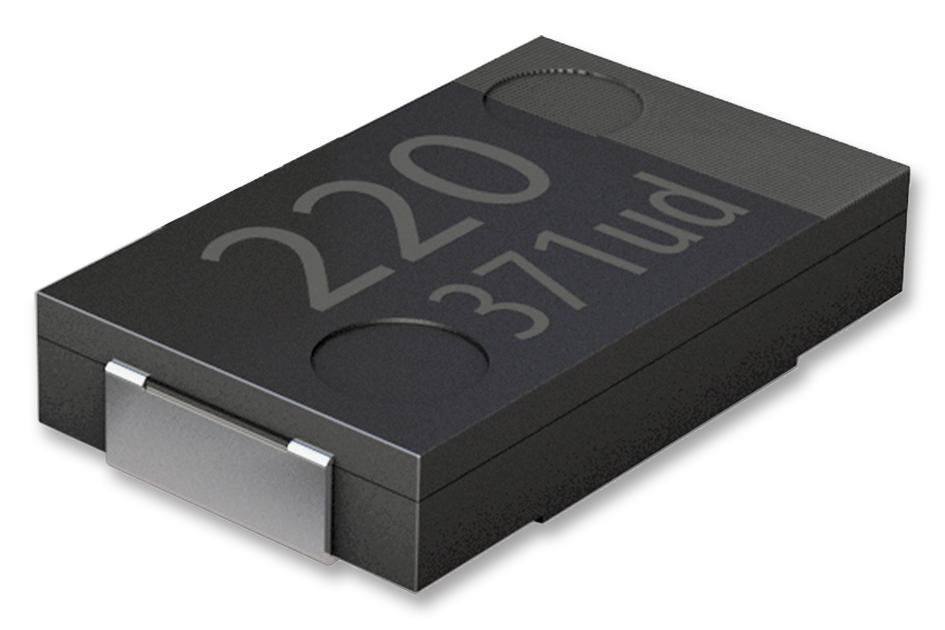

Panasonic EEFCX0J151R Conductive Polymer Capacitor
Panasonic's EEFCX0J151R is a surface mount conductive polymer aluminum electrolytic capacitor designed for a wide range of industrial applications. Its high voltage (35V max), low profile (1.9mm max height), and high ripple current (5600mA rms max) make it suitable for power supplies, DC-DC converters, and other demanding electronic circuits. The capacitor is RoHS compliant and halogen free, ensuring environmental responsibility. It offers excellent performance and reliability in compact designs.
Panasonic EEFCX0J151R Conductive Polymer Capacitor Specifications:
- Rated Voltage Range: 2.0 V to 35 V
- Nominal Capacitance Range: 15μF to 560μF
- Capacitance Tolerance: ±20%
- DC Leakage Current: I ≦ 0.1 CV(μA) [2.0 V to 6.3 V,2 min],I ≦ 0.3 CV(μA) [10 V to 35 V,2 min]
- Dissipation Factor: ≦ 0.06
- Surge Voltage: Rated voltage × 1.25
- Endurance: +105 ℃ 2000 h
- Ripple Current: 5600 mA rms max.
- ESR: 15 mΩ max.
Buy the EEFCX0J151R PANASONIC Conductive Polymer Capacitor | myMectronic
Purchase the Panasonic EEFCX0J151R securely and conveniently online.
Buy Now
Frequently Asked Questions
Where can I buy Panasonic EEFCX0J151R?
You can click on the BUY or RFQ button to purchase EEFCX0J151R from an authorized Panasonic distributor.
How do I troubleshoot issues or seek technical support for part EEFCX0J151R?
You can download the EEFCX0J151R datasheet or visit the Panasonic website for support.
Who is the manufacturer of EEFCX0J151R?
Panasonic
