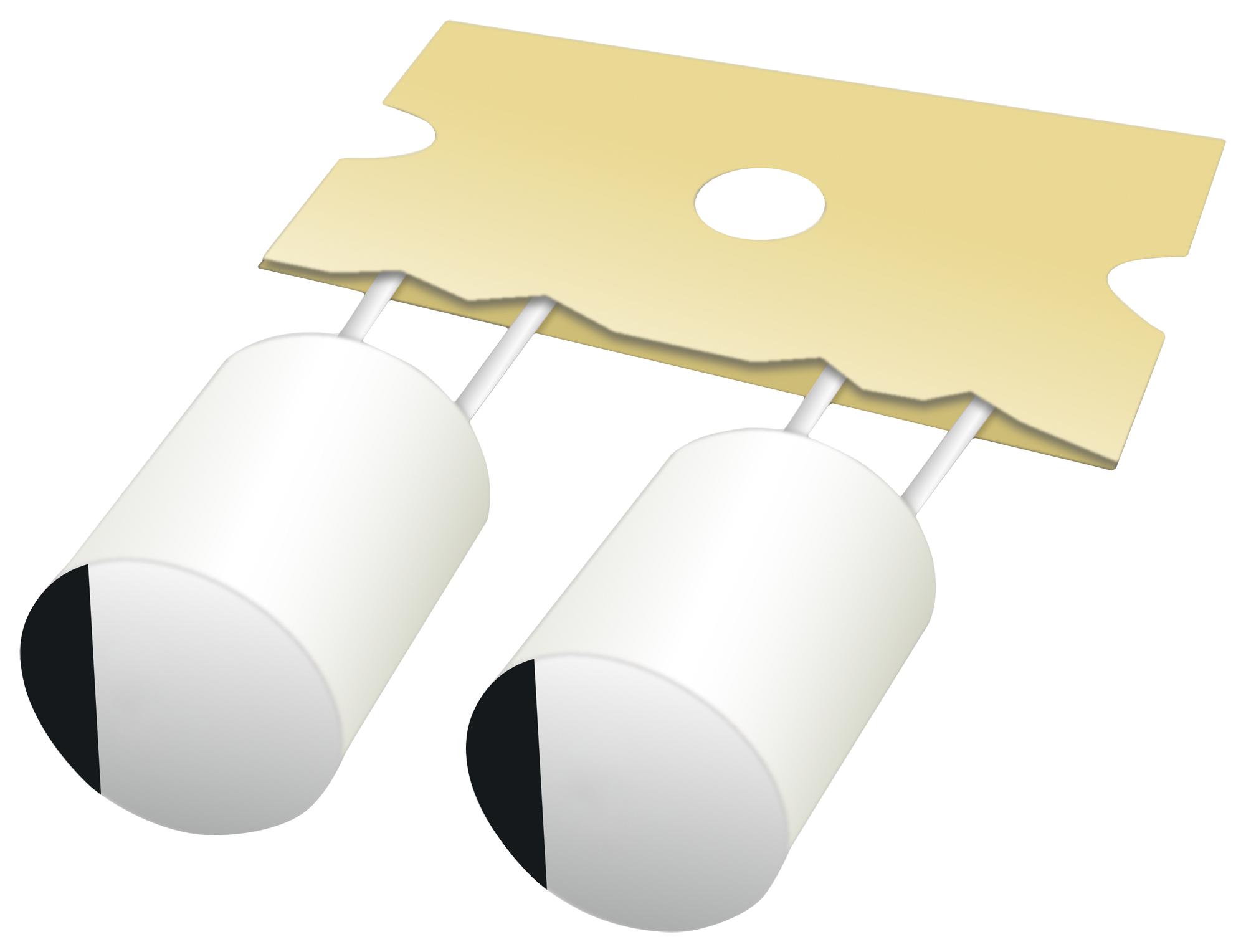

Panasonic EEHAZF1H560B High-Temp Aluminum Capacitor
The Conductive Polymer Hybrid Aluminum Electrolytic Capacitors are designed for high-temperature and high-voltage applications, offering enhanced endurance up to 150°C for 1000 hours. Features include low ESR, stable capacitance over temperature ranges, and excellent frequency characteristics. These capacitors are suitable for electronics requiring reliable performance, such as power supplies and automotive systems. They comply with RoHS and AEC-Q200 standards, ensuring safety, quality, and environmental friendliness. Easy to install with taping options, they provide consistent electrical performance in demanding environments while maintaining long-term stability and reliability.
Panasonic EEHAZF1H560B High-Temp Aluminum Capacitor Specifications:
- Size code F G
- Category temp. range -55 to +150°C
- Rated voltage range 25 V to 63 V
- Nominal cap. range 33 μF to 150 μF (F series), 56 μF to 270 μF (G series)
- Capacitance tolerance ±20% (120 Hz / +20°C)
- DC leakage current 1s 0.01 CV (WA) After 2 minutes
- Endurance: 150°C, 1000 hours, applying rated ripple current without exceeding rated voltage
- Capacitance change within +30% of initial value
- Dissipation factor (tan δ) and ESR within specified limits
- Shelf life after storage at +20°C, 85% to 90% RH, 2000 hours, rated voltage applied
- Marked with capacitance, voltage, size code, and series identification
- Suitable for automatic insertion with taping products
- RoHS compliant and built to meet reliability standards
- Capacitors are designed with pressure relief and proper mounting considerations to ensure safety
- Temperature effects: higher temperature increases leakage current and decreases ESR; frequency effects: higher frequency decreases capacitance and impedance
- Operation advice: avoid reverse voltage, overvoltage, and high ripple currents to ensure longevity and safety
- Manufactured with environmental considerations in mind, including restricted hazardous substances and proper disposal methods
Buy the Panasonic Series ZF Conductive Polymer Hybrid Aluminum Electrolytic Capacitors: EEHAZF1H560B
Discover the Panasonic high-temperature aluminum electrolytic capacitor EEHAZF1H560B, offering superior endurance at 150°C for 1000 hours. With low ESR, stable capacitance, and RoHS compliance, it excels in demanding power supply and automotive applications. Its robust design ensures excellent frequency characteristics, long-term stability, and safety features like pressure relief and proper mounting. Perfect for replacing older electrolytic capacitors, this product provides reliable performance, environmental friendliness, and easy installation through taping options. Upgrade your electronic systems today for enhanced durability and efficiency.
Buy Panasonic EEHAZF1H560B now and experience unmatched reliability and power efficiency in high-temperature electronics.
Frequently Asked Questions
Where can I buy Panasonic EEHAZF1H560B?
You can click on the BUY or RFQ button to purchase EEHAZF1H560B from an authorized Panasonic distributor.
How do I troubleshoot issues or seek technical support for part EEHAZF1H560B?
You can download the EEHAZF1H560B datasheet or visit the Panasonic website for support.
Who is the manufacturer of EEHAZF1H560B?
Panasonic
