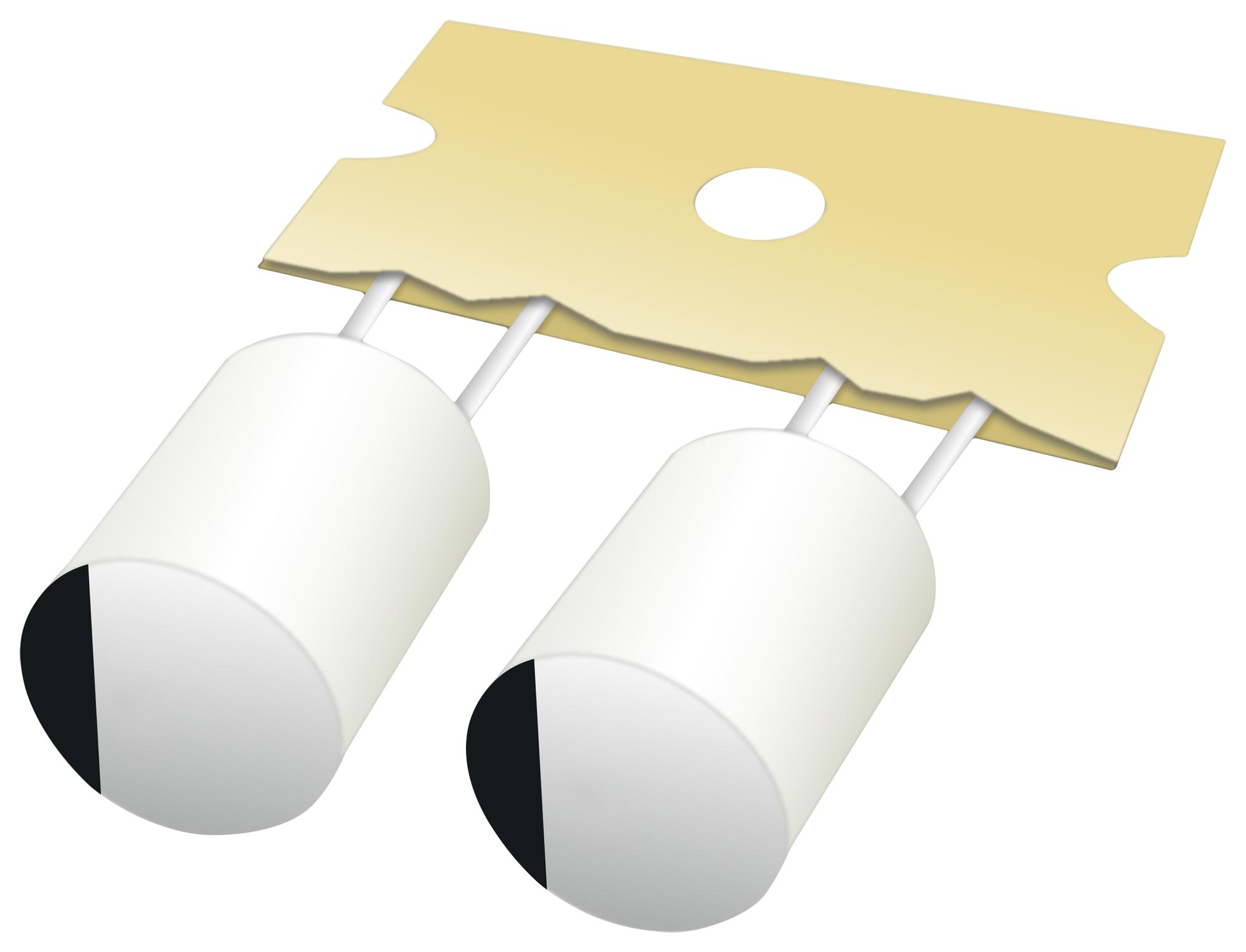

Panasonic EEHAZS1J151B Hybrid Aluminum Capacitor
Conductive Polymer Hybrid Aluminum Electrolytic Capacitors are designed for high-reliability applications with a long endurance of 4000 hours at 125°C, low ESR, and high ripple current capabilities. Suitable for electronics requiring stable performance over wide temperatures, these capacitors feature a compact radial lead form, excellent electrical characteristics, and compliance with industry standards including AEC-Q200 and RoHS. Their robust construction ensures durability in demanding environments, making them ideal for use in power supplies, automotive electronics, and industrial equipment where reliable long-term operation is essential.
Panasonic EEHAZS1J151B Hybrid Aluminum Capacitor Specifications:
- Size code: G12, G16
- Category temperature range: -55°C to +125°C
- Rated voltage range: 25 V to 63 V
- Capacitance range: 150 UF to 470 UF, 560 UF to 560 UF
- Capacitance tolerance: ±20% (120 Hz / +20°C)
- Endurance: 4000 h at 125°C with rated ripple current
- Shelf life: 2000 hours at 85°C, 85% to 90% RH
- Resistance to soldering heat: Meets industry standards
- Leakage current: Within initial limits, with specific values up to 3500-4000 mA rms
- Dissipation factor (tan δ): ≤ 0.01 CV (WA) after 2 minutes
- ESR: ≤ 200% of initial limit after endurance
- RoHS and AEC-Q200 compliant
- Physical form: Radial lead, 10.0 mm pitch for G12, 15.7 mm pitch for G16
- Operating temperature effects: Increased temperature raises leakage current and decreases ESR; lower temperature does the opposite
Buy the Buy Panasonic Conductive Polymer Hybrid Aluminum Electrolytic Capacitors Part Number EEHAZS1J151B Online
Purchase the Panasonic Conductive Polymer Hybrid Aluminum Electrolytic Capacitors EEHAZS1J151B online today. These capacitors deliver exceptional durability, low ESR, and high ripple current handling, making them ideal for automotive, industrial, and electronic power supply applications. With a long endurance life of 4000 hours at 125°C and compliance with AEC-Q200 and RoHS standards, they provide reliable operation in demanding environments. Order now to ensure your projects benefit from top-tier performance and industry-leading quality, with fast delivery and excellent technical support.
Order your Panasonic SeriesEEHAZS1J151B high-capacity, long-life aluminum electrolytic capacitor today and ensure reliable performance in your power applications.
Frequently Asked Questions
Where can I buy Panasonic EEHAZS1J151B?
You can click on the BUY or RFQ button to purchase EEHAZS1J151B from an authorized Panasonic distributor.
How do I troubleshoot issues or seek technical support for part EEHAZS1J151B?
You can download the EEHAZS1J151B datasheet or visit the Panasonic website for support.
Who is the manufacturer of EEHAZS1J151B?
Panasonic
