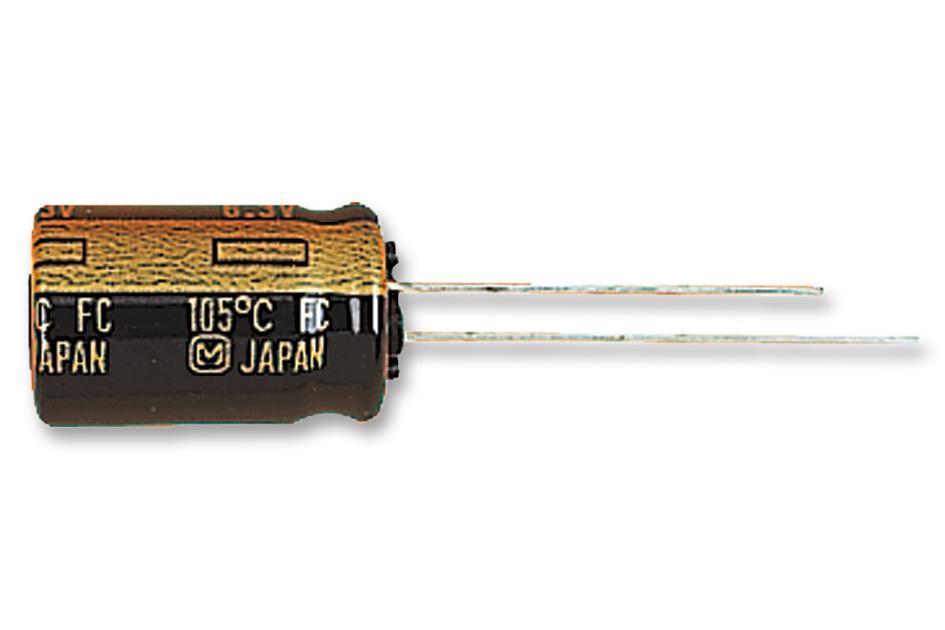

Panasonic EEUFC1E122 Aluminum Electrolytic Capacitor
The Panasonic EEU-FC1E122 is a radial lead aluminum electrolytic capacitor within the FC series, designed for robust performance in demanding applications. Featuring an endurance of 105°C for 1000 to 5000 hours, it exhibits low impedance and is AEC-Q200 compliant, ensuring suitability for automotive and industrial environments. RoHS compliance further enhances its appeal for environmentally conscious designs. The capacitor's specifications include a temperature range of -55°C to +105°C, rated voltage ranging from 6.3V to 100V, and capacitance ranging from 2.2μF to 15000μF. Frequency correction factors are provided for ripple current applications, ensuring optimal performance across a range of frequencies. Its dimensions are carefully controlled to ensure reliable integration into various circuit designs.
Panasonic EEUFC1E122 Aluminum Electrolytic Capacitor Specifications:
- Endurance: 105 ℃ 1000 h to 5000 h
- Low Impedance: Yes
- AEC-Q200 Compliant: Yes
- RoHS Compliant: Yes
- Temperature Range: -55 ℃ to +105 ℃
- Rated Voltage Range: 6.3 V to 100 V
- Capacitance Range: 2.2μF to 15000μF
- Capacitance Tolerance: ±20 % (120 Hz/+20℃)
- Leakage Current: I ≦ 0.01 CV or 3(μA) After 2 minutes
- Dissipation Factor (tan δ): 0.07 to 0.22 (depending on voltage and capacitance)
- Capacitance Change (After Life Test): Within ±20 % of initial value
- DC Leakage Current (After Life Test): Within initial limit
- Shelf Life: Meets endurance limits after 1000 h at +105 ℃
- Frequency Correction Factor: Varies with frequency and capacitance (see table)
