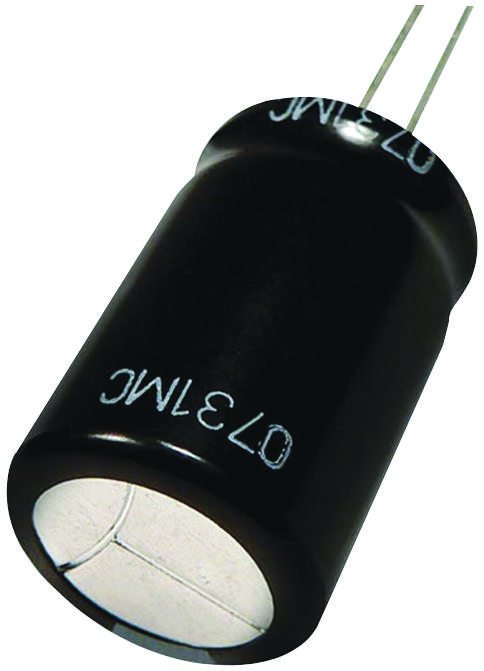

Panasonic EEUFR1A102LB Aluminum Electrolytic Capacitor
This high-quality aluminum electrolytic capacitor features a low ESR and endurance of up to 10,000 hours at +105°C, making it ideal for power supply and electronic circuit applications. It offers a wide category temperature range from -40°C to +105°C, with rated voltages from 6.3V to 63V and capacitance values from 4.7UF to 8200UF. Designed with radial leads, it complies with RoHS standards, providing reliable performance in demanding environments, while its construction ensures stability and long-term operational reliability.
Panasonic EEUFR1A102LB Aluminum Electrolytic Capacitor Specifications:
- Category Temp. Range: -40 °C to +105 °C
- Rated W.V. Range: 6.3 V.DC to 63 V.DC
- Nominal Cap. Range: 4.7 UF to 8200 UF
- Capacitance Tolerance: +20 % (120 Hz/+20 °C)
- DC Leakage Current: < 0.01 CV (uA) After 2 minutes
- Endurance: 5000 h to 10,000 h at +105 °C
- Imp- edance at 100 kHz: varies by capacitance and size, typically low impedance
- Dimensions: Body diameters from 5 mm to 16 mm, lengths from 12.5 mm to 35 mm
- Lead Diameter: 0.5 mm to 0.8 mm
- RoHS compliant, suitable for power supply and electronic circuit use
- Operating Frequency: 60 Hz to 100 kHz with frequency correction factors
- Temperature Coefficient: Capacitance change within +25 % initial value, leakage current within limits
- Shelf Life: meets endurance limits after storage at +105°C for 1000 hours
Buy the Panasonic Series FR Aluminum Electrolytic Capacitors: EEUFR1A102LB
Secure your electronics with Panasonic aluminum electrolytic capacitors. The EEUFR1A102LB model offers high endurance up to 10,000 hours at +105°C, low ESR, and wide voltage and capacitance options, making it perfect for power supply and filtering applications. RoHS compliant and reliable, these capacitors ensure stable operation in demanding environments. Buy online today to enhance your systems with proven quality, long lifespan, and stable performance. Experience seamless ordering and fast delivery of this essential electronic component.
Buy Panasonic EEUFR1A102LB now and experience unmatched reliability and performance with long-lasting endurance and low ESR features.
Frequently Asked Questions
Where can I buy Panasonic EEUFR1A102LB?
You can click on the BUY or RFQ button to purchase EEUFR1A102LB from an authorized Panasonic distributor.
How do I troubleshoot issues or seek technical support for part EEUFR1A102LB?
You can download the EEUFR1A102LB datasheet or visit the Panasonic website for support.
Who is the manufacturer of EEUFR1A102LB?
Panasonic
