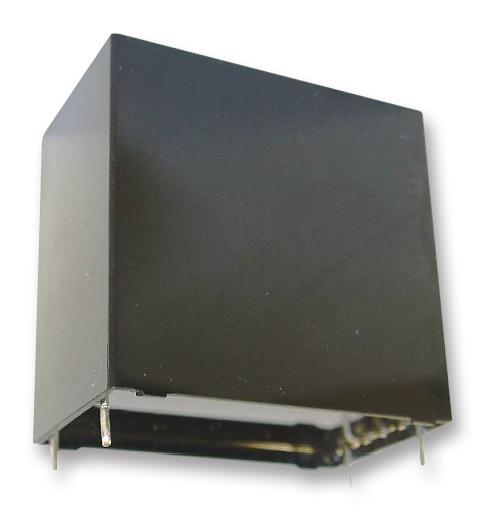

Panasonic EZPV1B306MTB Polypropylene Film Capacitor
The Panasonic EZPV series metallized polypropylene film capacitors are designed for high safety, reliability, and low loss in industrial and automotive applications. Featuring dielectric made from polypropylene film, segmented metallized electrodes, UL94 V-0 plastic case, and UL94 V-0 sealing, they are suitable for DC filtering, solar inverters, wind power, industrial power supplies, and automotive inverter circuits. Available in rated voltages up to 1100 V, with various capacitance options, these capacitors ensure long-term durability, low ESR, and compliance with RoHS and AEC-Q200 standards, making them ideal for demanding electronic and power conversion applications.
Panasonic EZPV1B306MTB Polypropylene Film Capacitor Specifications:
- Dielectric: Polypropylene film
- Electrodes: Metallized dielectric with segmented pattern
- Case material: UL94 V-0 plastic case
- Sealing: UL94 V-0
- Terminals: Tinned wires, 2-pin and 4-pin versions
- Rated voltage: 600 V, 800 V, 1100 V
- Capacitance range: 3 µF to 40 µF depending on voltage class
- Temperature range: -40°C to +105°C, with derating above 85°C
- Insulation resistance: 3,000 Ω·F at 20°C, 500 V, 60s
- Approval: RoHS compliant, AEC-Q200 for automotive, UL listed
- Dimensions vary with model: length approximately 15-58 mm, diameter approximately 15-52 mm
- Low ESR and loss, flame retardant case and sealing resin
- Maximum dv/dt V/s ranges from 15 V/us to 58 V/us depending on model
- Permissible ripple current and pulse current vary with capacitance and voltage
Buy the Panasonic EZPV – Reliable Film Capacitors for Industrial Applications
Purchase Panasonic EZPV series film capacitors online today for high safety, reliability, and efficiency in DC filtering, solar inverters, wind power, and automotive inverter circuits. Designed with metallized polypropylene dielectric, segmented electrodes, UL94 V-0 case, and RoHS compliance, these capacitors ensure long-term durability, low ESR, and high reliability. Perfect for power supplies, industrial equipment, and automotive applications, they offer excellent electrical characteristics, flame retardant properties, and compliance with safety standards. Order now to enhance your electronic system's performance with trusted Panasonic quality.
Get Panasonic EZPV series film capacitors today—built for high safety, long-lasting durability, and excellent performance in demanding electronic systems.
Frequently Asked Questions
Where can I buy Panasonic EZPV1B306MTB?
You can click on the BUY or RFQ button to purchase EZPV1B306MTB from an authorized Panasonic distributor.
How do I troubleshoot issues or seek technical support for part EZPV1B306MTB?
You can download the EZPV1B306MTB datasheet or visit the Panasonic website for support.
Who is the manufacturer of EZPV1B306MTB?
Panasonic
