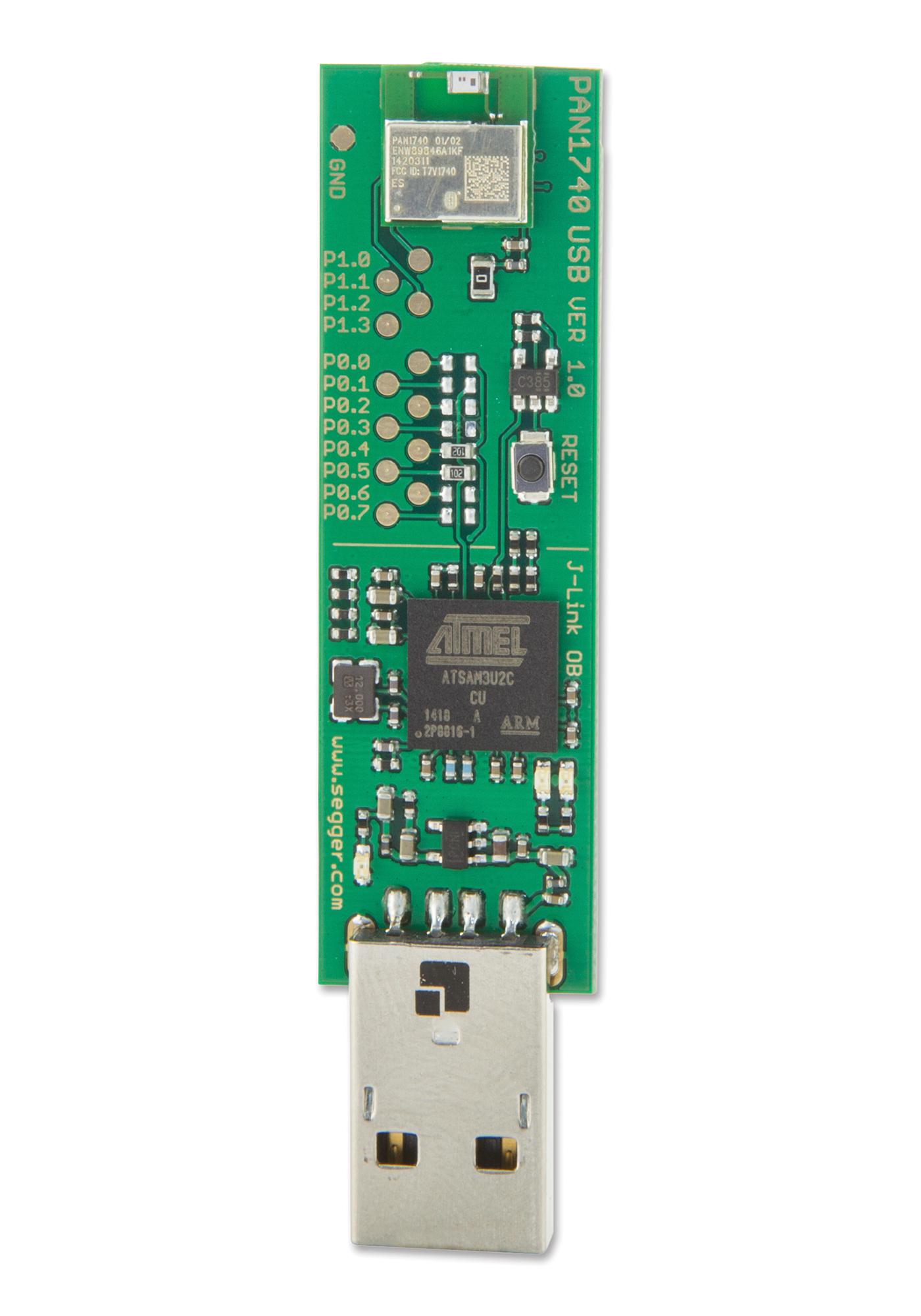

Panasonic ENW89846AZKF Bluetooth Module
The Panasonic PAN1740 is a compact Bluetooth Low Energy module that supports Bluetooth v4.1, designed for implementing Bluetooth functionality in various electronic devices. It features an ARM Cortex-M0 CPU and integrated Bluetooth Smart core, with low power consumption and a small form factor of 9.0 mm x 9.5 mm x 1.8 mm. The module includes internal memories such as ROM, OTP, and SRAM, and offers multiple operational modes including development, normal, and calibration. It supports UART, SPI, I2C interfaces, and has flexible GPIO pin configurations. Ideal for health monitoring, sports measuring, and human interaction applications, it ensures reliable wireless connectivity with integrated EMI shielding and no external components necessary.
Panasonic ENW89846AZKF Bluetooth Module Specifications:
- Dimensions: 9.0 mm x 9.5 mm x 1.8 mm
- Operating temperature: -40 °C to +85 °C
- Supply Voltage: 3.3 V
- Bluetooth Version: 4.1 (LE)
- Bluetooth Profiles: Embedded GATT profile, Bluetooth Smart
- Power Consumption: Peak 4.9 mA in Rx and Tx modes
- Link Budget: 93 dBm
- Memory: 84 KB ROM, 32 KB OTP, 42 KB SRAM, Retention RAMs (1 KB, 2 KB, 3 KB, 1 KB)
- Interfaces: UART, SPI, I2C, GPIOs
- Crystal oscillators: 16 MHz, 32 KHz
- Package size: 9.0 x 9.5 x 1.8 mm, SMD with antenna
- Certifications: FCC, Industry Canada, CE, RoHS, REACH
- Supported modes: Development, Normal, Calibration
- Power Modes: Active, Sleep, Extended Sleep, Deep Sleep
- Integration: No external components needed, integrated shielding for EMI resistance
Buy the Panasonic PAN1740 – Reliable Bluetooth 4.1 Module for Industrial Applications
Order the Panasonic PAN1740 Bluetooth module online today to benefit from its compact size, Bluetooth 4.1 support, low power operation, and easy integration into health, fitness, and human interaction devices. Its embedded ARM Cortex-M0 CPU and Bluetooth Smart core enable robust wireless connectivity, ideal for developing advanced electronic applications. With internal memories, multiple operation modes, and industry certifications, this module ensures high performance and reliability in your wireless solutions. Purchase now for efficient, reliable Bluetooth connectivity in your projects!
Buy Panasonic PAN1740 now and experience unmatched reliability, low power consumption, and easy integration into your wireless projects.
Frequently Asked Questions
Where can I buy Panasonic ENW89846AZKF?
You can click on the BUY or RFQ button to purchase ENW89846AZKF from an authorized Panasonic distributor.
How do I troubleshoot issues or seek technical support for part ENW89846AZKF?
You can download the ENW89846AZKF datasheet or visit the Panasonic website for support.
Who is the manufacturer of ENW89846AZKF?
Panasonic
