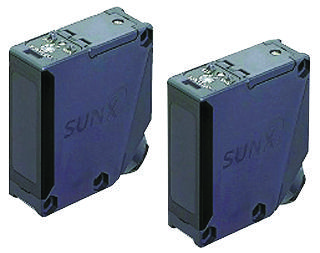

Panasonic EQ511T Reflective Photoelectric Sensor
The EQ-511T is an adjustable reflective photoelectric sensor designed for precise object detection over a sensing range of up to 8.202 feet. It features a two-turn mechanical distance adjuster with an indicator, switchable between background suppression (BGS) and foreground suppression (FGS) functions, with built-in timer options for on-delay or off-delay operations. The sensor's IP67-rated enclosure ensures durability in harsh environments, and it operates reliably unaffected by color or gloss of objects. Ideal for applications like package detection, residual amount sensing, and factory automation, the EQ-511T offers flexible, stable, and efficient sensing performance.
Panasonic EQ511T Reflective Photoelectric Sensor Specifications:
- Sensing Range: 0.2 to 2.5 m (0.656 to 8.202 ft)
- Max Sensing Distance: 0.1 to 2.6 m (0.328 to 8.202 ft)
- Hysteresis: 10% or less of operation distance
- Supply Voltage: 12 to 240 V DC, AC / DC multi-voltage compatible
- Outputs: Relay contact (resistive load, 250 V AC 3 A), NPN and PNP transistor outputs (max 100 mA sink/source current)
- Timer Functions: ON-delay / OFF-delay timer (0.1 to 5 sec.)
- Protection: IP67 waterproof rating, surge suppression, reverse polarity protection
- Operating Temperature: -20°C to +55°C
- Material: ABS enclosure, polycarbonate covers
- Mounting: via optional mounting brackets, suitable for panel or wall installation
- Indicators: Orange operation indicator, green stability indicator
- Response Time: approximately 20 ms
- Vibration/Shock Resistance: compliant with industrial standards
- Connections: screw terminal block, conduit connector compatible
Buy the Buy Electro Sensors EQ-511T Part Number EQ511T Online
Order the Electro Sensors EQ-511T online today to ensure precise object detection with flexible timer options, durable IP67 protection, and stable operation unaffected by surface gloss or color. This versatile sensor is ideal for factory automation, package detection, and residual level sensing. Its advanced BGS and FGS functions, combined with multi-voltage compatibility and easy mounting, make it an essential component for reliable and efficient industrial sensing solutions. Purchase now to enhance your automation process and improve operational productivity.
Buy Electro Sensors EQ-511T now and experience unmatched reliability, stable sensing, and flexible installation for industrial automation applications.
Frequently Asked Questions
Where can I buy Panasonic EQ511T?
You can click on the BUY or RFQ button to purchase EQ511T from an authorized Panasonic distributor.
How do I troubleshoot issues or seek technical support for part EQ511T?
You can download the EQ511T datasheet or visit the Panasonic website for support.
Who is the manufacturer of EQ511T?
Panasonic
