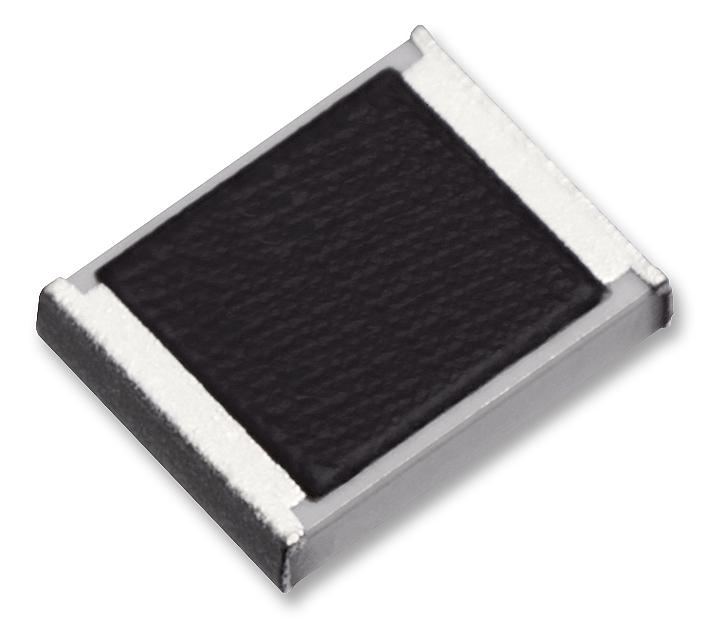

Panasonic ERJ1GEF24R0C Thick Film Chip Resistor
Panasonic's ERJ-1GEF24R0C is a precision thick film chip resistor engineered for demanding electronic applications. Its metal glaze thick film resistive element and three-layered electrode construction ensure high reliability and stability. The resistor's compact size and lightweight design contribute to PCB size reduction and lighter products. It's compatible with both reflow and flow soldering processes and is available in bulk, taping, and magazine packaging options for automated placement. The resistor's resistance value is marked on the element side, and it adheres to industry standards like IEC 60115-8 and JIS C 5201-8. Power derating is required for operation above 70°C.
Panasonic ERJ1GEF24R0C Thick Film Chip Resistor Specifications:
- Features: ['Small size and lightweight', 'High reliability', 'Matching with placement machines', 'Solderability']
- Resistance Tolerance: ±0.5% (ERJ2R, 3R, 6R Series), ±1% (ERJ2R, 3E, 6E, 8E, 14, 12 Series)
- Resistance Ranges: 10 to 1 M ohms
- Power Rating: 0.063 W (ERJ2R, 3R), 0.1 W (ERJ6R), 0.125 W (ERJ8E), 0.25 W (ERJ14N), 0.5 W (ERJ12N)
- Marking: Four-digit resistance value (except 2R, 3R, 6R, 3E Type)
- Standards: IEC 60115-8, JIS C 5201-8
- Packaging: Bulk, Taping, Magazine
- Dimensions: {'0402': '1.00±0.05 x 0.50+0.05 x 0.20±0.10 x 0.25±0.05 x 0.35±0.05 mm', '0603': '1.60±0.15 x 0.80+0.15 x 0.30±0.20 x 0.30±0.15 x 0.45±0.10 mm', '0805': '2.00±0.20 x 1.25±0.10 x 0.40±0.20 x 0.40±0.20 x 0.60±0.10 mm', '1206': '3.20+0.05 x 1.60+0.05 x 0.50±0.20 x 0.50±0.20 x 0.60±0.10 mm', '1210': '3.20±0.20 x 2.50±0.20 x 0.50±0.20 x 0.50±0.20 x 0.60±0.10 mm', '1812': '4.50±0.20 x 3.20±0.20 x 0.50±0.20 x 0.50±0.20 x 0.60±0.10 mm'}
