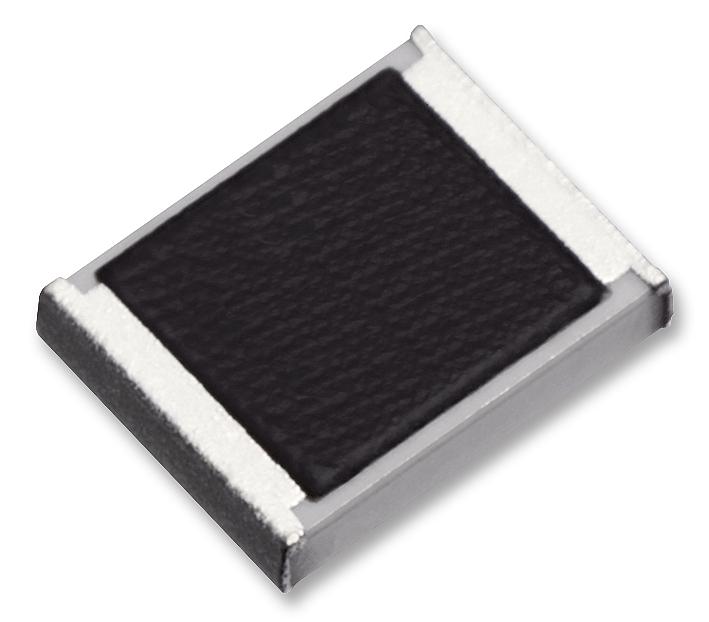

Panasonic ERJ1GEF8252C Precision Thick Film Resistor
Panasonic's ERJ-1GEF8252C precision thick film chip resistor is a crucial component in modern electronics, offering a compact and reliable solution for resistance needs. Its construction utilizes a metal glaze thick film resistive element and a three-layered electrode, ensuring high reliability and stability. The resistor is designed for PCB size reduction and lightweight products, making it ideal for applications in consumer electronics, automotive systems, and industrial equipment. It's compatible with both reflow and flow soldering techniques, simplifying integration into manufacturing processes. The resistor's marking system provides clear identification of resistance values, and its power derating curve ensures optimal performance across a range of operating temperatures. Available in various sizes and packaging options, the ERJ-1GEF8252C meets the demands of diverse electronic applications.
Panasonic ERJ1GEF8252C Precision Thick Film Resistor Specifications:
- Features: ['Small size and lightweight for PCB size reduction', 'High reliability due to metal glaze thick film resistive element', 'Matching with placement machines via bulk, taping, and magazine packaging', 'Suitable for reflow and flow soldering']
- Marking: Four-digit marking of resistance value
- Resistance Tolerance: ±1% (ERJ2R, 3E, 6E, 8E, 14, 12 Series), ±0.5% (ERJ2R, 3R, 6R Series)
- Reference Standards: IEC 60115-8, JIS C 5201-8
- Power Rating: 0.063 W (ERJ2R, 3R), 0.1 W (ERJ6R), 0.125 W (ERJ8E), 0.25 W (ERJ14N), 0.5 W (ERJ12N, 12S)
- Limiting Element Voltage: 50 V (ERJ2R, 3R, 6R), 150 V (ERJ6E, 8E, 14, 12)
- Resistance Range: 10 Ω - 1 MΩ
- T.C.R: ±100 ppm/°C (E24), ±50 ppm/°C (E96)
- Packaging: {'Standard Quantity': '10000 pcs./reel (2 mm pitch) for ERJ2R, 5000 pcs./reel for ERJ3R, 6R, 25000 pcs./case for ERJ3EK, 10000 pcs./case for ERJ6EN, 8EN'}
- Dimensions: {'0402': '1.00±0.05 x 0.50+0.05 x 0.20±0.10 x 0.25±0.05 x 0.35±0.05 mm', '0603': '1.60±0.15 x 0.80+0.15 x 0.30±0.20 x 0.30±0.15 x 0.45±0.10 mm', '0805': '2.00±0.20 x 1.25±0.10 x 0.40±0.20 x 0.40±0.20 x 0.60±0.10 mm', '1206': '3.20+0.05 x 1.60+0.05 x 0.50±0.20 x 0.50±0.20 x 0.60±0.10 mm', '1210': '3.20±0.20 x 2.50±0.20 x 0.50±0.20 x 0.50±0.20 x 0.60±0.10 mm', '1812': '4.50±0.20 x 3.20±0.20 x 0.50±0.20 x 0.50±0.20 x 0.60±0.10 mm', '2010': '5.00±0.20 x 2.50±0.20 x 0.60±0.20 x 0.60±0.20 x 0.60±0.10 mm'}
