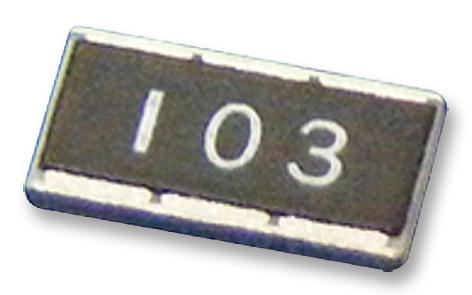

Panasonic ERJB1CFR022U High Power Chip Resistor
High power chip resistors with wide terminal construction designed for automotive and industrial applications, offering excellent heat dissipation and solder-joint reliability. Compliant with AEC-Q200 and RoHS standards, these resistors are ideal for electronic circuits in vehicles, including ECUs, anti-lock braking, and airbag systems. Constructed with a thick film resistive element on alumina substrates, they provide stable performance in high temperature environments and are available in various resistance values with embossed carrier taping for surface mounting.
Panasonic ERJB1CFR022U High Power Chip Resistor Specifications:
- Package: Embossed carrier taping, 4mm pitch, 5000 or 4000 pcs per reel
- Resistance values: 10mΩ to 10kΩ, various tolerances including ±1%, ±2%, ±5%
- Maximum working voltage: Up to 400V depending on model
- Power rating: 0.75W to 2W at rated ambient temperature
- Temperature range: -55°C to +125°C, derated according to temperature curves
- Dimensions: Length approximately 2.50-6.40mm, width 0.70-1.27mm, thickness 0.45-0.55mm
- Construction: Thick film resistive element on alumina substrate with outer electrode
- Compliance: AEC-Q200, RoHS
- Environmental endurance: Soldering heat, temperature cycling, humidity, and load life tested
- Applications: Automotive ECUs, anti-lock braking, airbag systems, current sensing
Buy the Buy Panasonic High Power Chip Resistors Wide Terminal Part Number ERJB1CFR022U Online
Order Panasonic ERJB1CFR022U high power chip resistor online today. Designed for automotive and industrial applications, this resistor offers excellent heat dissipation and solder-joint reliability, ensuring durable performance in critical electronic circuits like ECUs, ABS, and airbags. With compliance to AEC-Q200 and RoHS standards, it provides stable operation from -55°C to +125°C. Available in various resistance values, packaged on embossed carriers with 4mm pitch, it is ideal for surface mounting in demanding environments—order now for fast delivery and dependability.
Get Panasonic ERJB1CFR022U today—built for reliable automotive and industrial circuitry with excellent heat dissipation and solder-joint durability.
Frequently Asked Questions
Where can I buy Panasonic ERJB1CFR022U?
You can click on the BUY or RFQ button to purchase ERJB1CFR022U from an authorized Panasonic distributor.
How do I troubleshoot issues or seek technical support for part ERJB1CFR022U?
You can download the ERJB1CFR022U datasheet or visit the Panasonic website for support.
Who is the manufacturer of ERJB1CFR022U?
Panasonic
