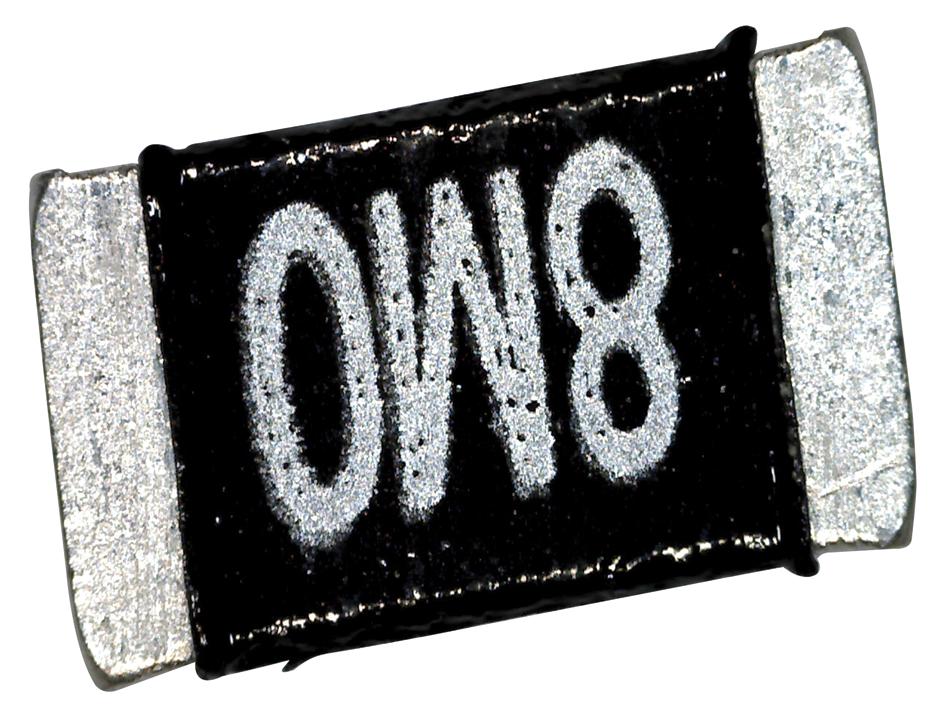

Panasonic ERJM1WSJ8M0U Low Resistance Chip Resistor
These are low resistance value chip resistors designed for current sensing applications, available in 0603 and 2512 sizes. They feature high precision resistance ranging from 1 milliohm to 20 milliohm, with stable resistance unaffected by measurement position and high heat emission. Constructed with alloy plates, these resistors have a low profile and a strong body, with inductance less than 1.0 nH thanks to their metal plate structure. They are RoHS compliant, suitable for high-current applications, and come with various packaging and soldering options, suitable for professional electronics assembly.
Panasonic ERJM1WSJ8M0U Low Resistance Chip Resistor Specifications:
- Sizes available: 0603 (0.25 W) and 2512 (1 W) with thick film construction
- Resistance range: 1 mΩ to 20 mΩ, shown by 3 digits or letters, decimal point expressed as M
- Resistance tolerance: ±1%, ±2%, ±5%
- Temperature coefficient of resistance: approximately 100 to 350 parts per million per degree Celsius
- Inductance less than 1.0 nH due to metal plate structure
- Construction: Alloy plate resistive body, plated metal terminals, resin protective coating
- RoHS compliant; suitable for high heat emission applications
- Dimensions for 0603: approximately 1.6 mm x 0.8 mm; for 2512: approximately 3.2 mm x 1.6 mm
- Operating temperature range: -55°C to +170°C, with derating above 70°C
- Packaging includes punched carrier tape, 3,000 to 5,000 pieces per reel
- Soldering conditions: Suitable for standard surface-mount soldering processes
Buy the Buy Panasonic Low Resistance Chip Resistors Part Number ERJM1WSJ8M0U Online
Purchase Panasonic low resistance chip resistors online today and benefit from high precision, stable resistance, and RoHS compliance. Whether you need 0603 or 2512 sizes, these resistors are perfect for current sensing and high-current applications. Their alloy plate construction offers low inductance and high heat emission, ensuring reliable performance in demanding environments. Easy to integrate with standard surface-mount soldering, they come in various packaging options suitable for automated assembly. Order now and enhance your electronic project's reliability and efficiency.
Buy Panasonic ERJM1WSJ8M0U low resistance chip resistor now and ensure high precision current sensing with stable performance in your electronic designs.
Frequently Asked Questions
Where can I buy Panasonic ERJM1WSJ8M0U?
You can click on the BUY or RFQ button to purchase ERJM1WSJ8M0U from an authorized Panasonic distributor.
How do I troubleshoot issues or seek technical support for part ERJM1WSJ8M0U?
You can download the ERJM1WSJ8M0U datasheet or visit the Panasonic website for support.
Who is the manufacturer of ERJM1WSJ8M0U?
Panasonic
