Panasonic ERJMS4HF9M0U Current Sensing Resistor
The ERJMS4HF9M0U is a high-performance current sensing resistor with a metal plate design, ideal for precision current measurement. It features a small case size with high power dissipation, enhanced long-term stability through metal plate bonding technology, and robust outer resin for excellent heat dissipation. Operating over a wide temperature range from -65 °C to +170 °C, it complies with AEC-Q200 standards and RoHS regulations, making it suitable for automotive and industrial applications. Its high reliability ensures accurate current sensing in compact, high-temperature environments.
Panasonic ERJMS4HF9M0U Current Sensing Resistor Specifications:
- Resistance Tolerance: ±1%
- Resistance Range: 1.0 mΩ to 20 mΩ
- Power Rating (at 70°C): 3W (ERJMS4 series)
- Resistance Temperature Coefficient (TCR): +75 to +130 ppm/°C
- Operating Temperature Range: -65 °C to +170 °C
- Dimensions: Length 6.40±0.25 mm, Width 3.20±0.25 mm, Height 2.20±0.40 mm
- Material: Metal plate element, Ni/Sn surface treatment, Resin outer coating
- Certification: AEC-Q200, RoHS Compliant
- Maximum Pulse Energy for Continuous Operation: 1000 W (at specified conditions)
- Vibration Resistance: 10 to 2000 Hz, <0.5% resistance change

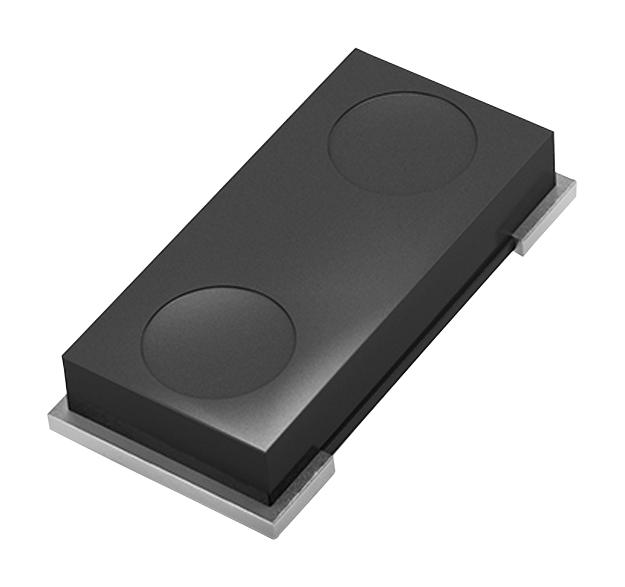

Buy the Buy Panasonic Current Sensing Resistors Part Number ERJMS4HF9M0U Online
Purchase the Panasonic ERJMS4HF9M0U current sensing resistor online today. Crafted with advanced metal plate bonding technology, it provides high accuracy and stability across a wide temperature range from -65 °C to +170 °C. Its compact size and excellent heat dissipation make it ideal for automotive, industrial, and high-temperature electronics. Certified by AEC-Q200 and RoHS compliant, this resistor ensures long-term reliability and safety in critical applications. Get superior performance and quick delivery when you buy online now.
Order your Panasonic Series ERJMS4HF9M0U high-current sensing resistor today and ensure reliable performance in your automotive and industrial projects.
Frequently Asked Questions
Where can I buy Panasonic ERJMS4HF9M0U?
You can click on the BUY or RFQ button to purchase ERJMS4HF9M0U from an authorized Panasonic distributor.
How do I troubleshoot issues or seek technical support for part ERJMS4HF9M0U?
You can download the ERJMS4HF9M0U datasheet or visit the Panasonic website for support.
Who is the manufacturer of ERJMS4HF9M0U?
Panasonic
