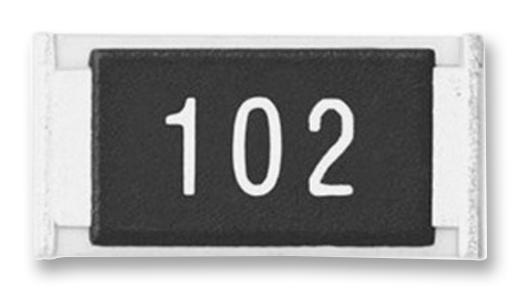

Panasonic ERJPA2F2202X Anti-Surge Chip Resistor
These are anti-surge thick film chip resistors designed for reliable performance in various electronic applications. They feature superior ESD surge characteristics compared to standard metal film resistors, high reliability with metal glaze thick film elements and three-layer electrodes, and are suitable for reflow and flow soldering processes. Available in multiple power ratings and sizes such as 0603, 0402, 1206, and 1210, with high resistance values, high voltage capabilities, and compliance with IEC 60115-8, JIS C 5201-8, JEITA RC-2134C standards. Ideal for high-precision, high-power, and high-voltage applications in automotive, industrial, and consumer electronics.
Panasonic ERJPA2F2202X Anti-Surge Chip Resistor Specifications:
- Power Ratings: 0.20 W (0603, 0402), 0.33 W (0603), 0.50 W (0805, 1210), 0.66 W (1206), 1.02 M to 10 M resistance range
- Resistance Tolerance: ±1% or ±5%
- Resistance Range: 10Ω to 1MΩ (variable depending on series)
- Limiting Element Voltage: 500 V (high voltage capability)
- TCR: +100 (±10%/K)
- Material: Metal glaze thick film resistive element with three layers of electrodes
- Standards: IEC 60115-8, JIS C 5201-8, JEITA RC-2134C, RoHS compliant
- Size: 0402, 0603, 0805, 1206, 1210
- ESD Resistance: 100 pF and 150 pF sample at +1 kV to +3 kV
- Operating Temperature: -55°C to +155°C (some series up to +125°C)
- Soldering: Suitable for both reflow and flow soldering
- Compliance: AEC-Q200
Buy the Buy Panasonic Anti-Surge Thick Film Chip Resistors Part Number ERJPA2F2202X Online
Purchase the Panasonic ERJPA2F2202X anti-surge thick film chip resistor online today to ensure dependable surge protection for your electronic projects. These high-reliability resistors feature superior ESD resistance, broad resistance range, and high voltage capacity, making them ideal for industrial, automotive, and consumer electronics. Suitable for both reflow and flow soldering, they meet international standards including IEC 60115-8, JIS C 5201-8, and JEITA RC-2134C. Secure your supply now for consistent, high-performance circuit protection that you can trust.
Order your Panasonic ERJPA2F2202X series high-power chip resistor today and enhance your electronic designs with reliable surge protection and high precision.
Frequently Asked Questions
Where can I buy Panasonic ERJPA2F2202X?
You can click on the BUY or RFQ button to purchase ERJPA2F2202X from an authorized Panasonic distributor.
How do I troubleshoot issues or seek technical support for part ERJPA2F2202X?
You can download the ERJPA2F2202X datasheet or visit the Panasonic website for support.
Who is the manufacturer of ERJPA2F2202X?
Panasonic
