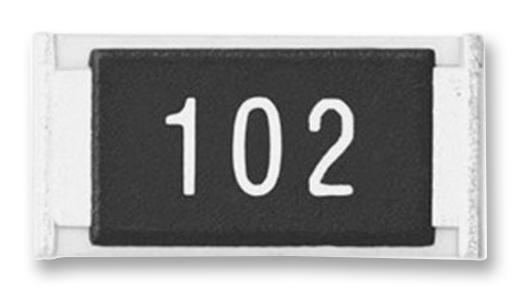

Panasonic ERJUP6D1802V Anti-Sulfurated Thick Film Resistor
The ERJUP6D1802V is a high-reliability anti-sulfurated thick film chip resistor designed for various electronic applications. This resistor features an Ag-Pd-based inner electrode structure that offers excellent resistance to sulfurization, making it suitable for environments with sulfur gases. It provides superior ESD surge characteristics over standard metal film resistors and utilizes a metal glaze thick film resistive element with three electrode layers for enhanced durability. Available in 0805 inch size with a 0.50 W power rating, it supports reflow and flow soldering, complies with IEC, JIS, JEITA standards, and is AEC-Q200 and ROHS certified. Its robust design ensures high reliability in demanding conditions.
Panasonic ERJUP6D1802V Anti-Sulfurated Thick Film Resistor Specifications:
- Size: 0805 inch / 2012 mm
- Power Rating: 0.50 W
- Resistance Tolerance: ±1%
- Resistance Value Code: e.g., 1802 for 18 kΩ
- Electrode Material: Ag-Pd-based inner electrode
- Resistive Element: Metal glaze thick film
- Soldering: Suitable for reflow and flow soldering
- Standards: IEC 60115-8, JIS C 5201-8, JEITA RC-2134C
- Certification: AEC-Q200 compliant, ROHS compliant
- Operating Temperature Range: -55°C to +155°C
- Surge Characteristics: Superior to standard metal film resistors
- Environmental Resistance: High resistance to sulfurization and ESD surge
- Dimensions: 1.25 ±0.10 mm width, 2.00 ±0.20 mm length, 0.25 ±0.20 mm height
- Mass: 4 grams per 1000 pcs
Buy the Buy Panasonic Anti-Sulfurated Thick Film Resistor Part Number ERJUP6D1802V Online
Purchase the Panasonic ERJUP6D1802V anti-sulfur thick film chip resistor online today to ensure high durability, superior ESD surge protection, and reliable performance in harsh environments. This 0.50 W, 0805 size resistor is ideal for applications requiring high resistance to sulfurization, equipped with Ag-Pd inner electrodes, making it suitable for demanding industrial and automotive electronics. Shop now for fast delivery and support for reflow and flow soldering, backed by Panasonic's quality standards.
Buy Panasonic ERJUP6D1802V now and experience unmatched reliability and high sulfur resistance in your electronic designs.
Frequently Asked Questions
Where can I buy Panasonic ERJUP6D1802V?
You can click on the BUY or RFQ button to purchase ERJUP6D1802V from an authorized Panasonic distributor.
How do I troubleshoot issues or seek technical support for part ERJUP6D1802V?
You can download the ERJUP6D1802V datasheet or visit the Panasonic website for support.
Who is the manufacturer of ERJUP6D1802V?
Panasonic
