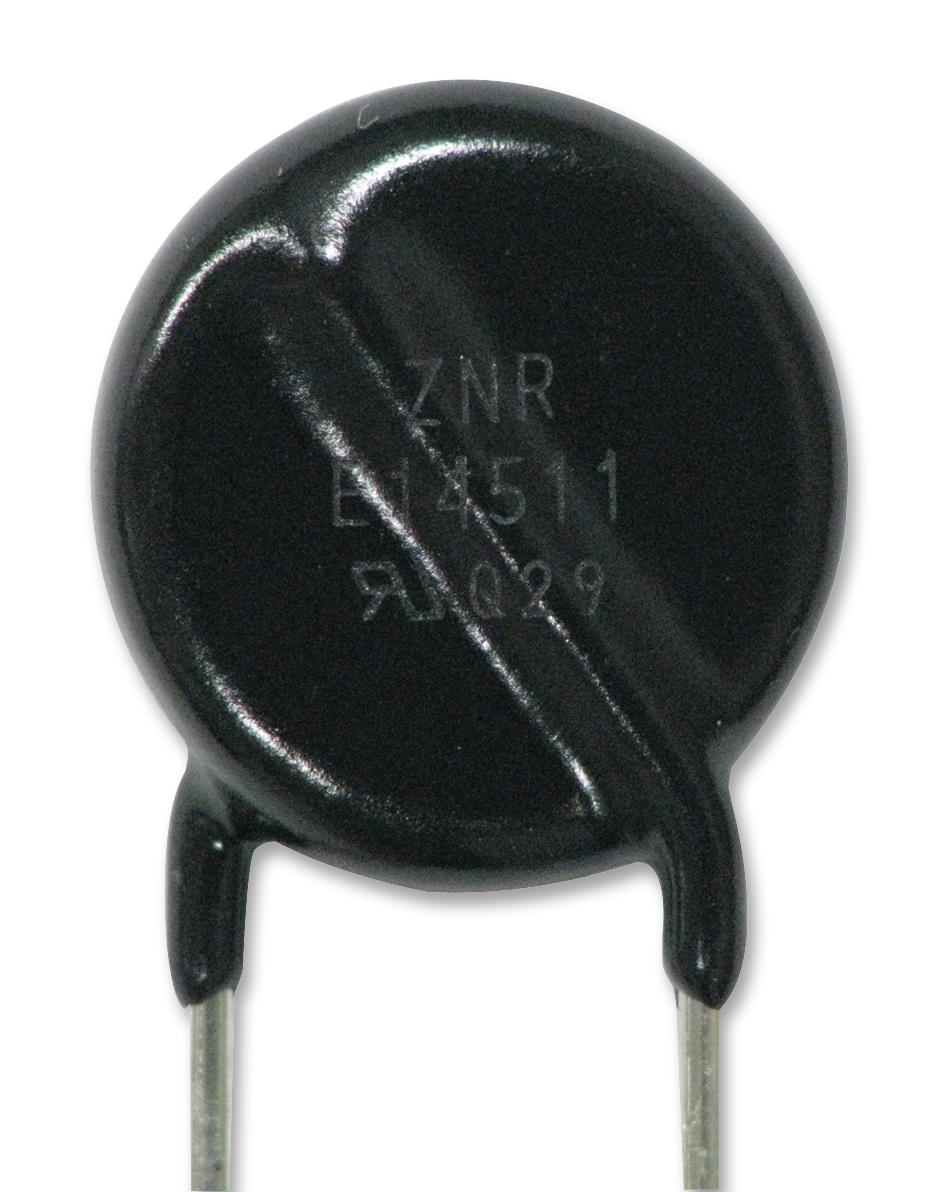

Panasonic ERZE10A751 Surge Absorber
The Panasonic ERZE10A751 is a high-capacity ZNR surge absorber designed for efficient transient overvoltage suppression. Suitable for noise filtering and surge protection in electronic circuits, it features a maximum varistor voltage of 750V, rated energy absorption of 1240W (8/20 μs), and peak currents up to 4500A. With a compact size and operating temperature range of -40°C to 85°C, this robust device ensures reliability in various industrial and consumer electronic applications, providing effective protection against transient surges and overvoltage conditions.
Panasonic ERZE10A751 Surge Absorber Specifications:
- Varistor maximum voltage: 750V (185 to 825V range)
- Rated energy power: 1240W (8/20 μs)
- Peak current: 4500A (2 times: 5 min. interval)
- Maximum clamping voltage: 1240V
- Operating temperature range: -40°C to 85°C
- Storage temperature range: -40°C to 125°C
- Dimensions: Diameter approximately 12.5 mm, length approximately 15.0 mm
- Capacitance at 1 kHz: 100 pF
- RoHS compliant
- Standards: UL1449, IEC61051, CQC (GB/T), IEC60950-1, IEC62368-1
Buy the Panasonic ERZE10A751 U+2013 Reliable Surge Absorber for Industrial Applications
Secure your electronic systems with the Panasonic ERZE10A751 surge absorber. Offering high energy absorption of 1240W and a maximum varistor voltage of 750V, it's ideal for protecting sensitive electronics from transient surges. With peak currents up to 4500A and operating temperatures between -40°C to 85°C, this compact, RoHS-compliant device ensures reliable surge protection in various industrial and consumer applications. Purchase online now for fast, dependable delivery and enhance your circuit safety.
Order your Panasonic ERZE10A751 surge protection device today and ensure dependable transient overvoltage suppression for your electronic equipment.
Frequently Asked Questions
Where can I buy Panasonic ERZE10A751?
You can click on the BUY or RFQ button to purchase ERZE10A751 from an authorized Panasonic distributor.
How do I troubleshoot issues or seek technical support for part ERZE10A751?
You can download the ERZE10A751 datasheet or visit the Panasonic website for support.
Who is the manufacturer of ERZE10A751?
Panasonic
