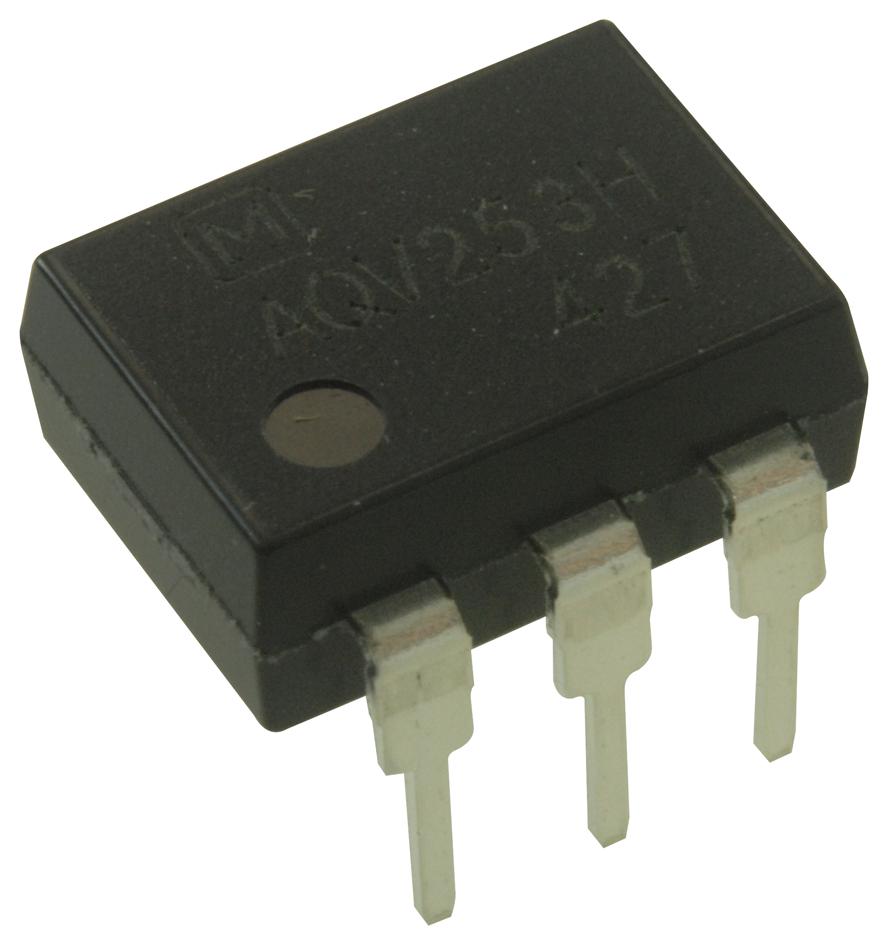

Panasonic AQV253H Optoisolator
The AQV253H is a DIP6-pin type optoisolator featuring low on-resistance and reinforced insulation, capable of handling load voltages up to 250V and load currents of 200mA. It offers excellent isolation voltage ratings of 1,500V AC and 5,000V AC, suitable for measuring instruments, data communication, and automatic meter reading devices. This device operates across a temperature range of -40°C to +85°C, ensuring reliable performance in industrial environments. Its electrical characteristics include a maximum forward current of 50mA for the LED and peak load voltages for various applications, providing safe and efficient operation.
Panasonic AQV253H Optoisolator Specifications:
- Load Voltage: 250V
- Load Current: 200mA
- Max LED Forward Current: 50mA
- Peak Load Voltage: 1500V AC
- Isolation Voltage: 5,000V AC
- Operating Temperature Range: -40°C to +85°C
- Type: DIP6-pin reinforced insulation
- Power Dissipation: 75mW
- Turn On Time: Max 3ms
- Turn Off Time: Max 0.2ms
- Output Capacitance: Max 3pF
- Weight: Light, suitable for PCB mounting
- RoHS Compliant
Buy the Panasonic Series AQV Optoisolator: AQV253H
Order the Panasonic AQV253H optoisolator online today to enhance your industrial control system. With low on-resistance, reinforced insulation, and high voltage ratings, this device ensures safe and reliable operation for measurement, communication, and automation tasks. Its robust design withstands ambient temperatures from -40°C to +85°C, making it ideal for demanding environments. Select the AQV253H for superior electrical isolation, performance stability, and easy PCB integration—buy now and upgrade your equipment effortlessly.
Buy Panasonic AQV253H now and experience unmatched reliability and performance in industrial isolation applications.
Frequently Asked Questions
Where can I buy Panasonic AQV253H?
You can click on the BUY or RFQ button to purchase AQV253H from an authorized Panasonic distributor.
How do I troubleshoot issues or seek technical support for part AQV253H?
You can download the AQV253H datasheet or visit the Panasonic website for support.
Who is the manufacturer of AQV253H?
Panasonic
