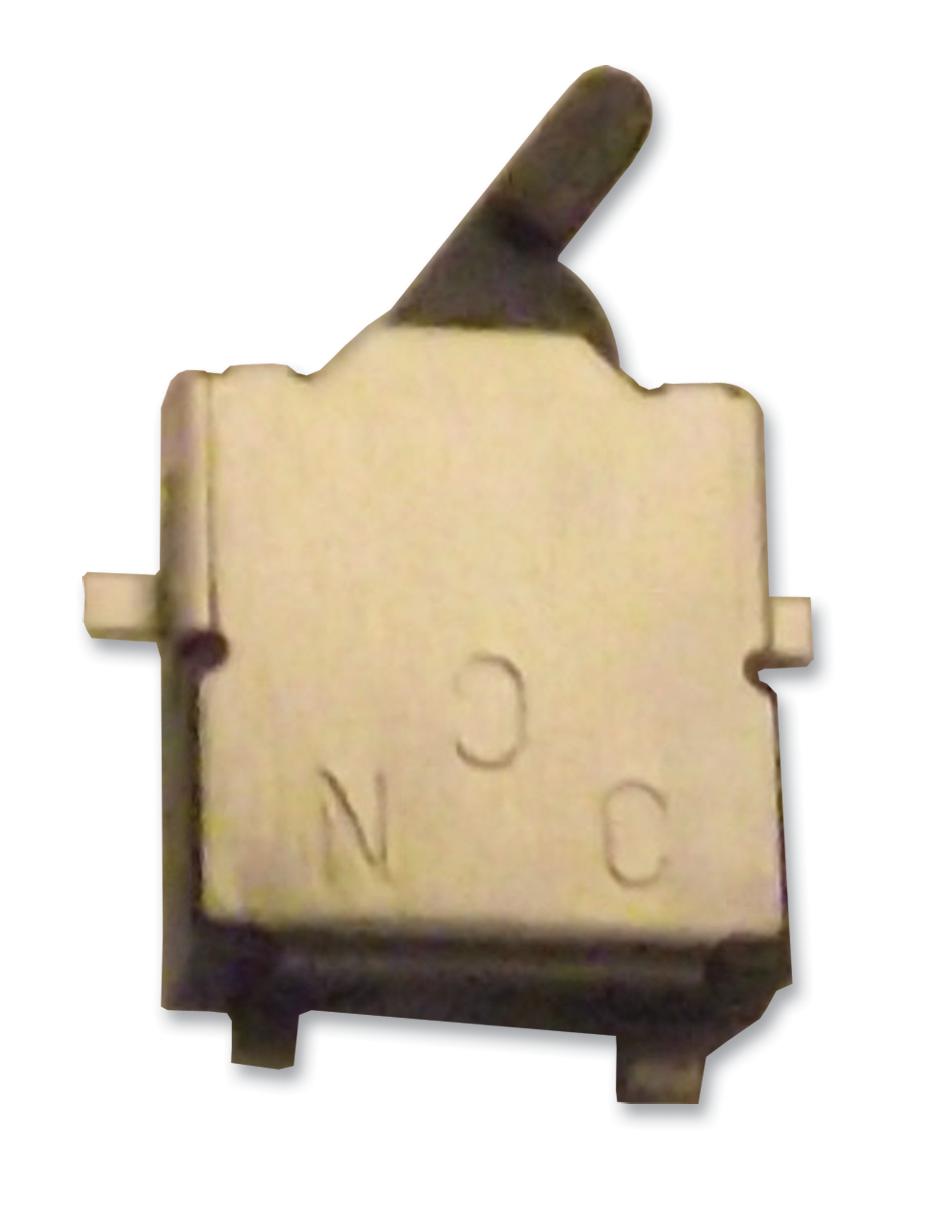

Panasonic ESE18R62A Detector Switch
The detector switch ESE18R62A features a normally closed contact configuration with a 1-pole, 1-throw design suitable for detecting media in portable electronic devices. It has a compact, thin body of 1.2mm height, supporting both standard and long stroke types with proprietary embossed tape packaging for surface mounting and reflow soldering. The switch operates within temperatures from -10°C to +60°C, has a minimum operating life of 50,000 cycles, and provides reliable performance in electronic detection applications, including mobile phones and digital cameras.
Panasonic ESE18R62A Detector Switch Specifications:
- Type: Normally-closed, 1-pole 1-throw
- Height: 1.2 mm
- Stroke Type: Standard and Long stroke
- Operating Force: 300 mN max.
- Rating: 50 μA at 3 Vdc to 10 mA at 5 Vdc
- Contact Resistance: 500 mΩ max. (Initial)
- Insulation Resistance: 100 MΩ min. (100 Vdc)
- Dielectric Voltage: 100 Vac for 1 min.
- Operating Life: 50,000 cycles min.
- Temperature Range: -10°C to +60°C
- Heat Resistance: +70°C for 96 hours
- Humidity Resistance: 90-95% RH at +40°C for 96 hours
- Mounting: Surface-mounted with embossed tape for reflow soldering
- Dimensions: Height 1.2 mm, typical contact and operational stroke details vary per type
Buy the Buy Panasonic ESE18R62A Detector Switch Part Number ESE18R62A Online
Purchase the Panasonic ESE18R62A detector switch online now to ensure superior performance in portable electronics. With a compact, 1.2mm profile, it offers reliable switching with a lifespan of over 50,000 cycles. Designed for surface mounting, it supports both standard and long stroke requirements, making it ideal for media detection in mobile phones, digital cameras, and DVD players. Its robust construction withstands temperatures from -10°C to +60°C and humidity test conditions, providing dependable operation in demanding environments. Secure your supply today for professional-grade electronic applications.
Order your Panasonic ESE18R62A switch today and enhance your electronic detection systems with reliable quality and compact design that fit portable devices seamlessly.
Frequently Asked Questions
Where can I buy Panasonic ESE18R62A?
You can click on the BUY or RFQ button to purchase ESE18R62A from an authorized Panasonic distributor.
How do I troubleshoot issues or seek technical support for part ESE18R62A?
You can download the ESE18R62A datasheet or visit the Panasonic website for support.
Who is the manufacturer of ESE18R62A?
Panasonic
