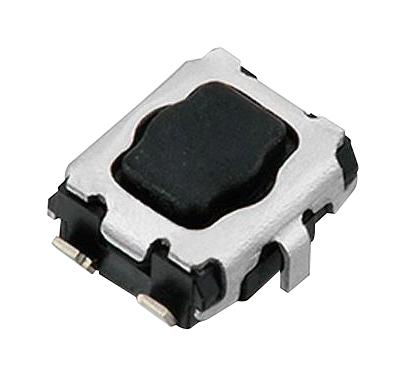

Panasonic EVPAA302K Light Touch Switch
The Panasonic EVPAA302K is a compact, high-quality light touch switch designed for portable electronics and keyless entry systems. Featuring a 3.5 mmx2.9 mm size and a height of 1.7 mm, it offers reliable snap action functionality with various operating forces up to 7.0 N. This switch provides excellent electrical insulation, a contact resistance of 100 mΩ max, and a dielectric withstand voltage of 250 V AC. Its robust construction ensures durability with a minimum of 200,000 cycles, making it ideal for modern electronic applications requiring compact, durable, and responsive switching components.
Panasonic EVPAA302K Light Touch Switch Specifications:
- Dimensions: 3.5 mm x 2.9 mm, Height: 1.7 mm
- Type: Snap action/Push-on, SPST
- Rating: 10 pA 2 V DC to 20 mA 15 V DC (Resistive load)
- Contact Resistance: 100 mΩ max
- Electrical Insulation Resistance: 100 MQ min (at 100 V DC)
- Dielectric Withstanding Voltage: 250 V AC for 1 min
- Bouncing: 10 ms max
- Operating Force: 1.0 N, 1.6 N, 2.4 N, 3.5 N, 5.0 N, 7.0 N
- Travel: 0.15 mm + 0.1 mm
- Endurance: 200,000 cycles minimum
- Operating Temperature: -40°C to +85°C
- Storage Temperature: -40°C to +85°C (Bulk), -20°C to +60°C (Taping)
- Quantity per Reel: 5,000 pcs
- Quantity per Carton: 25,000 pcs
- Design: Non-washable, with optional ground terminal, J-bent terminals
Buy the Panasonic Series EVPAA Light Touch Switches: EVPAA302K
Secure your Panasonic EVPAA302K light touch switch online today and enjoy quick delivery for your electronic projects. Designed for durability and compactness, this switch ensures precise operation in portable devices and access systems. Its robust construction withstands over 200,000 cycles, offering long-lasting performance. Ideal for engineers and hobbyists seeking reliable, high-quality switching components that fit seamlessly into small spaces. Purchase now to upgrade your portable and security electronics with this dependable, high-performance switch that guarantees consistent operation and enhances device functionality.
Order your Panasonic Series EVPAA302K high-durability light touch switch today and enhance your electronic projects with reliable, compact switching solutions.
Frequently Asked Questions
Where can I buy Panasonic EVPAA302K?
You can click on the BUY or RFQ button to purchase EVPAA302K from an authorized Panasonic distributor.
How do I troubleshoot issues or seek technical support for part EVPAA302K?
You can download the EVPAA302K datasheet or visit the Panasonic website for support.
Who is the manufacturer of EVPAA302K?
Panasonic
