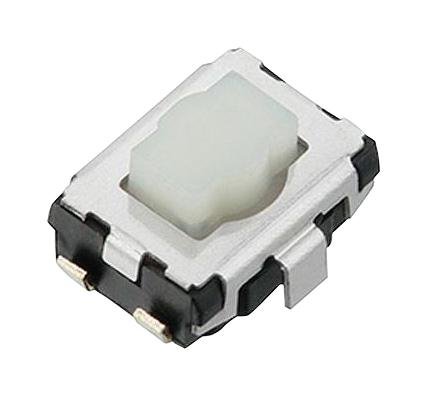

Panasonic EVQP9H02W Light Touch Switch
These high-quality light touch switches are designed for reliable operation in portable electronic devices, automotive keyless entry systems, and car audio equipment. With a compact size of 4.7 mm x 3.5 mm and a height of 2.5 mm, they offer excellent durability and long operational life, supporting up to 1,000,000 cycles. Available in various operating forces and colors, the switches feature J-bent terminals for high mountability and are rated for resistive loads up to 15 V DC. Suitable for surface mounting and characterized by robust electrical and mechanical performance, they ensure dependable switching in demanding environments, with a temperature range from -40°C to +85°C.
Panasonic EVQP9H02W Light Touch Switch Specifications:
- External dimensions: 4.7 mm x 3.5 mm
- Height: 2.5 mm
- Push travel: Middle 2.5 mm, Short 2.1 mm
- Operating Force: 1.0N to 25N depending on model
- Contact Resistance: 100 mΩ max
- Electrical rating: 15 V DC (Resistive load), 10 pA at 2 VDC to 20 mA
- Dielectric Withstanding Voltage: 250 V AC for 1 min
- Operating Temperature: -40°C to +85°C
- Endurance: Up to 1,000,000 cycles for some models, 200,000 cycles for higher force variants
- Mounting: J-bent terminals suitable for surface mounting
- Storage Temperature: -20°C to +60°C
- Quantity: 4,000 pcs per reel, 20,000 pcs per carton
Buy the Panasonic EVQP9H02W – Reliable Light Touch Switches for Industrial Applications
Enhance your electronic designs with Panasonic EVQP9H02W high-quality light touch switches. These compact, reliable, and long-lasting switches are perfect for portable electronics, automotive keyless entry systems, and car audio. Offering exceptional durability with up to 1,000,000 cycles, they feature a size of 4.7 mm x 3.5 mm with a 2.5 mm push travel. Suitable for surface mounting, these switches support resistive loads up to 15 V DC and operate in temperatures from -40°C to +85°C. Buy online now for dependable switching performance.
Order your Panasonic EVQP9H02W series high-reliability light touch switch today and ensure seamless operation in your portable and automotive electronic projects.
Frequently Asked Questions
Where can I buy Panasonic EVQP9H02W?
You can click on the BUY or RFQ button to purchase EVQP9H02W from an authorized Panasonic distributor.
How do I troubleshoot issues or seek technical support for part EVQP9H02W?
You can download the EVQP9H02W datasheet or visit the Panasonic website for support.
Who is the manufacturer of EVQP9H02W?
Panasonic
